Description

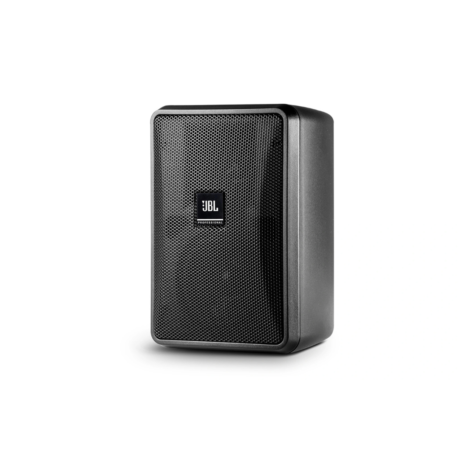

The JBL Control 23-1 is a compact two-way 3-inch indoor/outdoor loudspeaker designed for foreground/background music and paging applications. It delivers rich sound, wide 100° × 100° coverage, and consistent dispersion in a modern high-design enclosure. With 50W power handling, 8Ω operation, and built-in 70V/100V transformer taps, it is ideal for retail stores, restaurants, health clubs, hotels, theme parks, educational facilities, cafés, and leisure venues.
More Information
Key Features
- Compact two-way 3-inch loudspeaker
- 3-inch woven fiberglass cone woofer
- 1/2-inch PEI diaphragm tweeter with fluid cooling
- 50W continuous pink noise power handling
- 100W continuous program power rating
- Wide 100° horizontal × 100° vertical coverage
- Built-in 15W 70V/100V multi-tap transformer
- Direct 8Ω operation support
- Weather-resistant enclosure and transducers
- InvisiBall® wall-mounting hardware included
- Optional U-bracket mounting support
- Suitable for indoor and outdoor applications
Technical Specification
- Model: JBL Control 23-1
- Speaker Type: Two-Way Indoor/Outdoor Loudspeaker
- Woofer: 76 mm / 3 inch Woven Fiberglass Cone
- Tweeter: 13 mm / 0.5 inch PEI Diaphragm Tweeter
- Frequency Range (-10 dB): 70 Hz – 20 kHz
- Frequency Response (±3 dB): 95 Hz – 19 kHz
- Power Rating: 100W Continuous Program
- Continuous Pink Noise Power: 50W
- Peak Power: 200W Peak
- Maximum Input Voltage: 17.2V RMS / 34.4V Peak
- Maximum SPL: 103 dB Continuous / 109 dB Peak
- Sensitivity: 86 dB
- Coverage Angle: 100° H × 100° V
- Directivity Factor: 5.8
- Directivity Index: 7.2 dB
- Nominal Impedance: 8Ω
- Crossover Type: 2nd Order Low-Pass / 2nd Order High-Pass
- Transformer Taps at 70V: 15W, 7.5W, 3.7W, 1.8W
- Transformer Taps at 100V: 15W, 7.5W, 3.7W
- Recommended High-Pass Filter: 70 Hz, 24 dB/oct
- Enclosure Material: High Impact Polystyrene
- Grille: Zinc-Plated Steel with Polyester Powder Coating
- Mounting Hardware: InvisiBall® Wall-Mounting System Included
- Optional Mounting: MTC-23UB-1 U-Bracket
- Outdoor Rating: IP-44 / IP-55 with Optional WeatherMax™ Grille

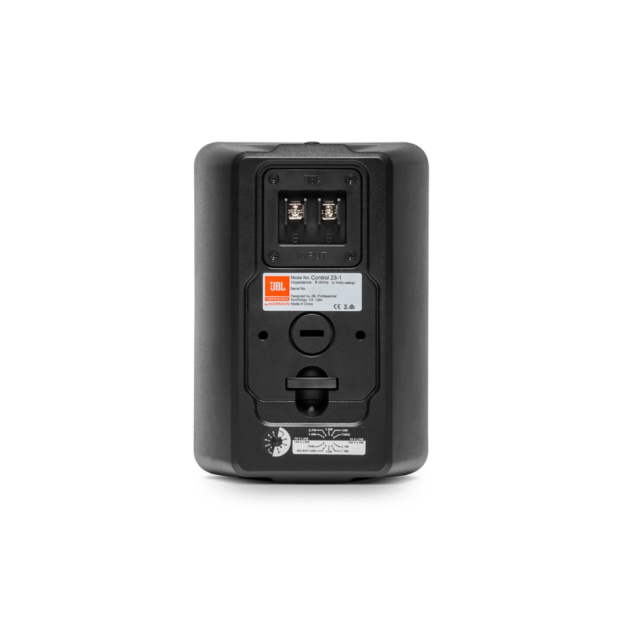

- Input Connector: Screw-Down Terminal Strip
- Wire Support: Up to 12 AWG / 2.5 mm²
- Agency Rating: ROHS Compliant, Transformer UL Recognized

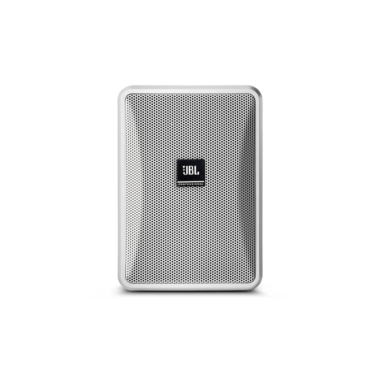

- Color Options: Black or White
- Dimensions: 200 × 141 × 111 mm
- Net Weight: 1.8 kg
- Shipping Weight: 3.85 kg Pair Pack / 12 kg Master Pack
