Description

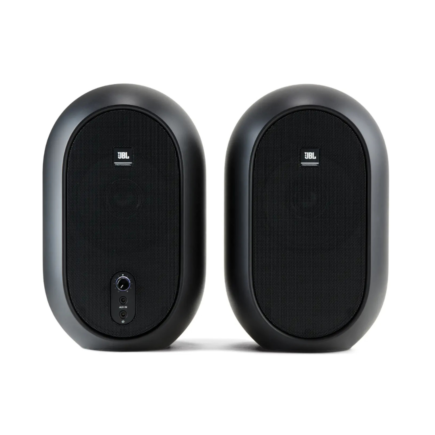

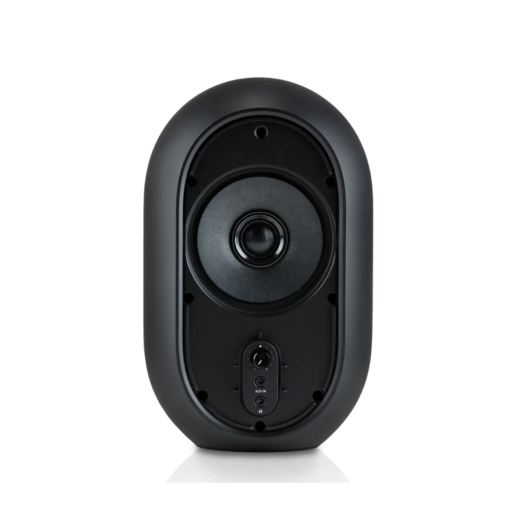

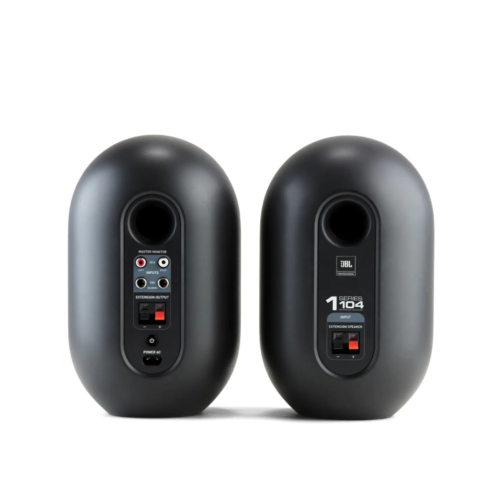

The JBL 104 is a compact powered desktop reference monitor pair designed for home recording, podcasting, video production, and portable reference monitoring. It uses a 4.5-inch / 118 mm LF driver with a 0.75-inch / 19 mm soft-dome HF driver in a coaxial design for accurate imaging and clear detail.
More Information
Key Features
- Compact powered desktop reference monitor pair
- 4.5-inch / 118 mm low-frequency driver
- 0.75-inch / 19 mm soft-dome high-frequency driver
- Coaxial driver design
- Integrated 60 W Class-D amplifier
- 30 W power to each speaker
- Front-panel volume control
- Front-panel headphone jack with speaker mute
- 1/8-inch aux, RCA, and 1/4-inch TRS balanced inputs
- Ported ABS enclosure with metal grille
Technical Specification
- Model: JBL 104
- Speaker Type: Powered desktop reference monitor
- System Input Type: 1/8-inch aux, RCA, 1/4-inch TRS balanced
- System Output Type: 1/8-inch stereo headphone with auto speaker mute
- LF Transducer: 4.5 inch / 118 mm
- HF Transducer: 0.75 inch / 19 mm soft dome
- Enclosure Type: Ported
- Crossover Frequency: 1725 Hz, 1st order
- Power Amplifier: 60 W Class-D
- Power Distribution: 30 W each speaker
- Sensitivity: 88 dB SPL @ 1m with -10 dBV Aux In
- System Maximum SPL: 92 dB continuous
- System Peak SPL: 102 dB
- Maximum SPL Momentary Peak: 104 dB
- Frequency Range (-3 dB): 88 Hz – 20 kHz
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- System Rated Impedance: 8 ohms
- Minimum Impedance: 7.8 ohms @ 260 Hz
- Cabinet Tuning Frequency: 72 Hz
- Coverage Pattern: 120° x 60°
- AC Input Voltage: 100 – 240 VAC, 50 / 60 Hz
- Current Draw: 85 W
- Enclosure Material: ABS with metal grille
- Finish: Matte black acrylic paint
- Dimensions: 247 x 153 x 124 mm
- Dimensions in Inches: 9.72 x 6.02 x 4.88 inch
- Net Weight Primary Monitor: 2.06 kg / 4.54 lb
- Net Weight Secondary Monitor: 1.73 kg / 3.81 lb
