Description

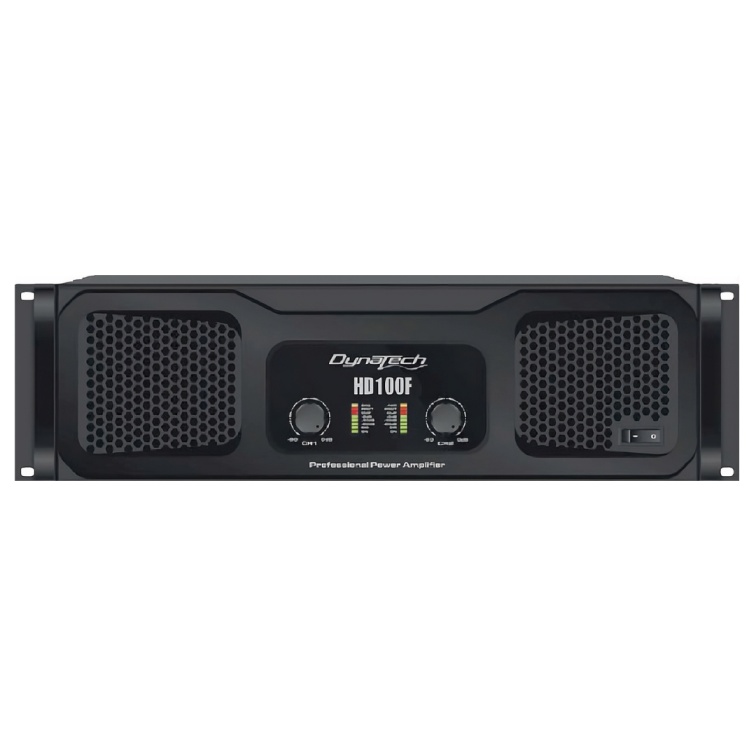

The Dynatech HD100F is the most powerful model in the HD-F Series, designed for large-scale professional sound reinforcement, touring systems, concert PA setups, and high-power subwoofer applications. It features a heavy-duty toroidal transformer power supply, Class-H amplification technology, advanced protection circuits, and efficient front-to-rear cooling for continuous high-output performance. The amplifier is ideal for driving multiple 18-inch bass cabinets and large-format line array systems.
More Information
Key Features
- High-power Class-H amplifier design
- Robust toroidal transformer power supply
- Stereo, Parallel, and Bridge operating modes
- Front-to-rear airflow cooling system
- Variable-speed cooling fans
- High damping factor for excellent bass control
- Soft-start circuitry
- Clip limiter and peak current limiter
- DC, VHF, overload, short-circuit, and thermal protection
- Balanced Neutrik XLR inputs and outputs
- NL4 Speakon and binding-post speaker outputs
- Designed for professional touring and large PA systems
Technical Specifications
- Output Power @ 8Ω Stereo: 2000 W × 2
- Output Power @ 4Ω Stereo: 3200 W × 2
- Output Power @ 2Ω Stereo: 4200 W × 2
- Output Power @ 8Ω Bridge: 6400 W
- Output Power @ 4Ω Bridge: 7200 W
- Frequency Response: 20 Hz – 20 kHz (+0/-0.5 dB)
- THD+N: < 0.02%
- Signal-to-Noise Ratio: > 80 dB
- Damping Factor: > 1300
- Slew Rate: > 20 V/μs
- Input Sensitivity: 0.775 V / 1.0 V / 1.4 V selectable
- Input Impedance: 20 kΩ Balanced / 10 kΩ Unbalanced
- Voltage Gain: 44.2 dB
