Description

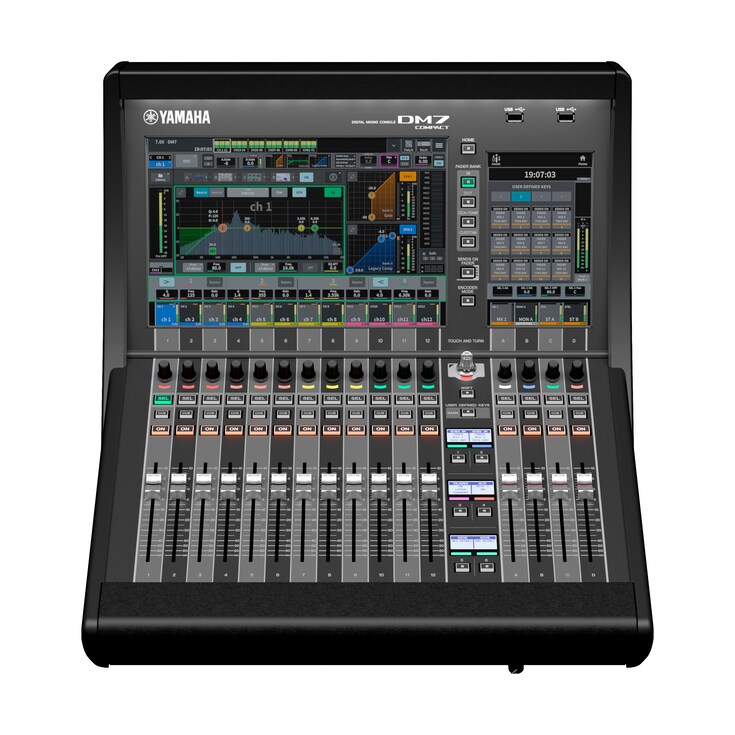

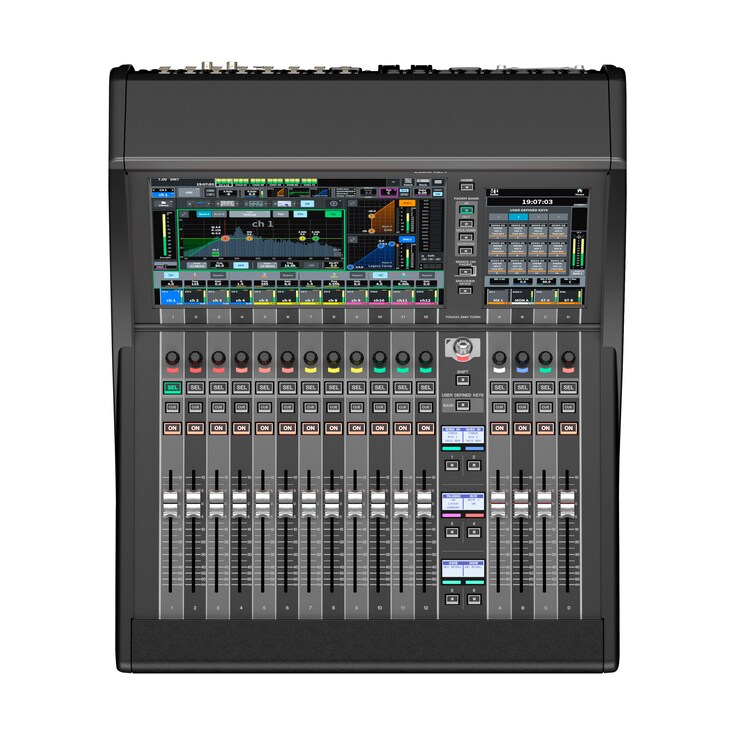

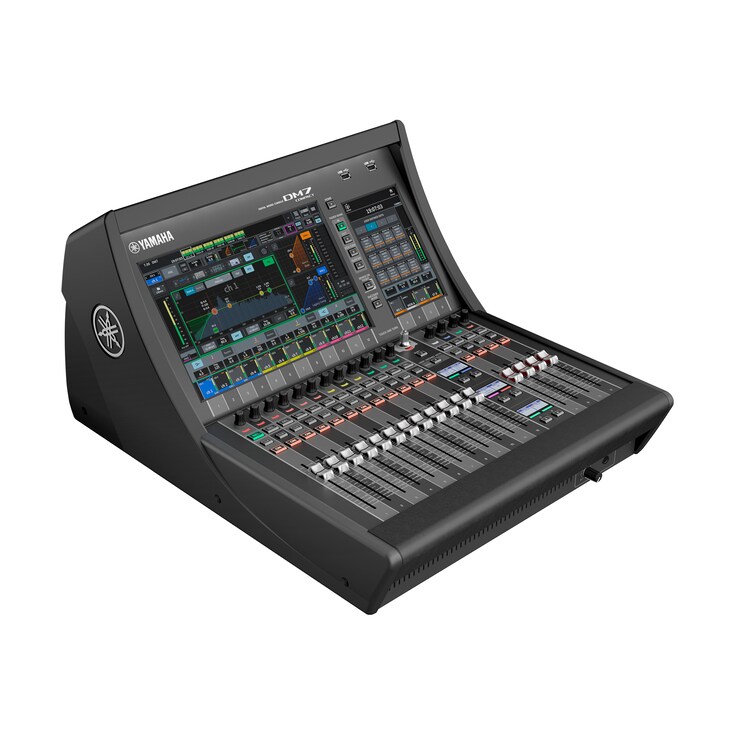

The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
More Information
- 72 input channels for handling multiple audio sources
- 48 mix buses, 12 matrix buses, and stereo buses for flexible routing
- Dual touchscreens (12.1 inch and 7 inch) for control and navigation
- 16 motorized faders with layer control system
- Dante audio networking support up to 144 × 144 channels
- USB audio interface (18 in / 18 out) for recording and playback

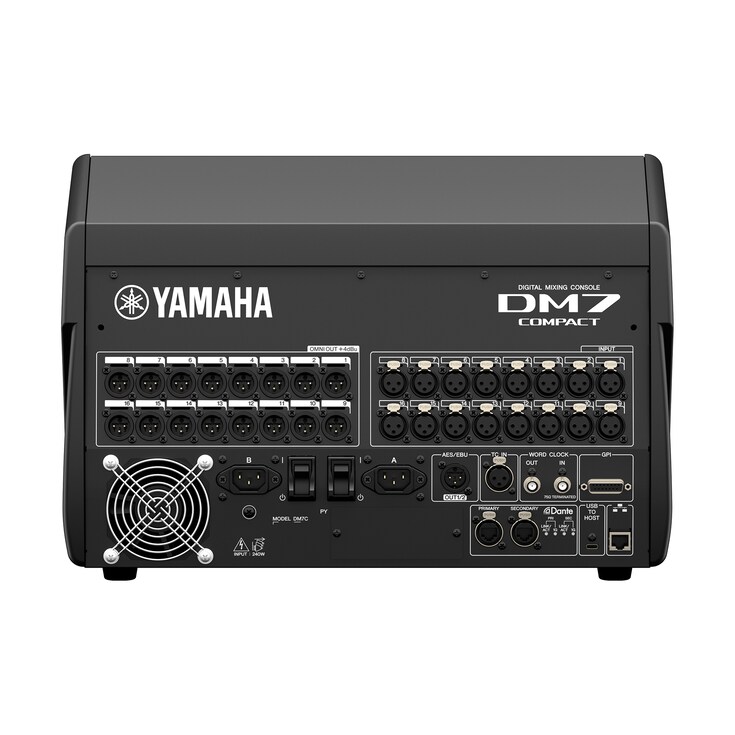

- 16 analog inputs and 16 analog outputs
- Built-in redundant power supply for reliability in live use
Technical Specifications:
- Input mixing channels: 72 mono
- Buses: 48 Mix + 12 Matrix + 2 Stereo
- Display: 12.1″ multi-touch screen x 1, 7″ multitouch screen x 1
- Faders: 16 (12 + 4)
- Analog I/O: 16 inputs / 16 outputs
- Dante: 144 in / 144 out
- AES/EBU: 1 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power supply: Redundant power supply built-in
- Power consumption: 240 W
- Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5″ x 12.8″ x 22.2″)
- Net Weight: 16.5 kg (36.4 lb
