Description

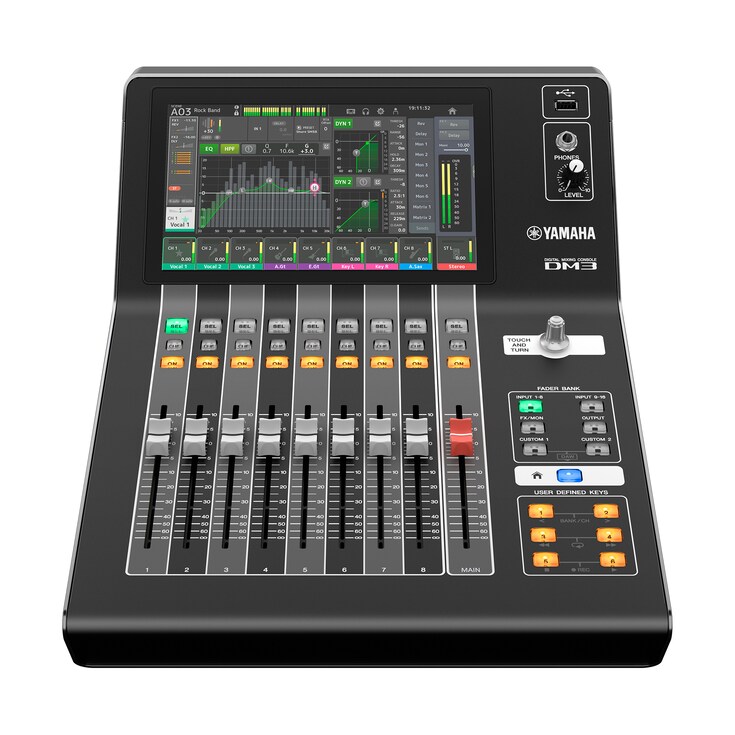

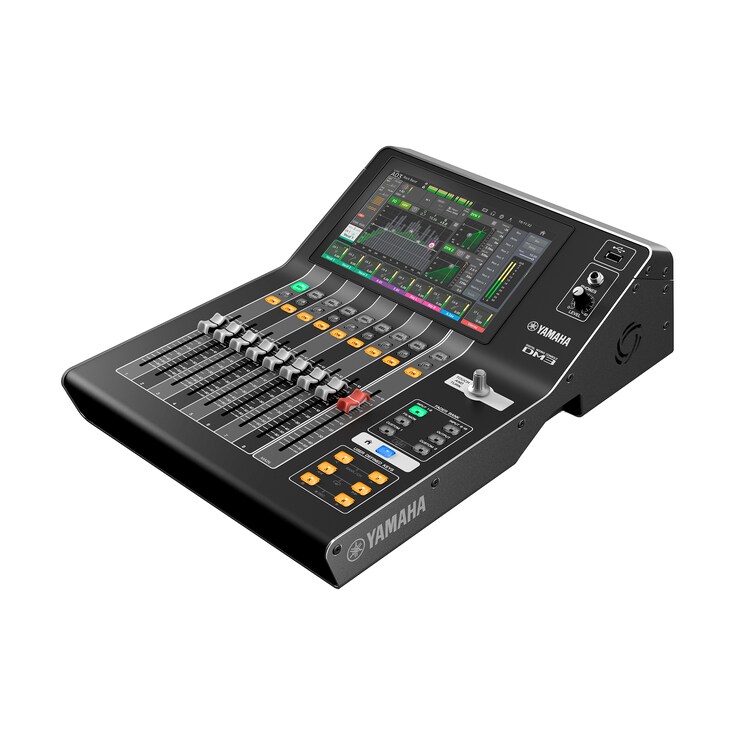

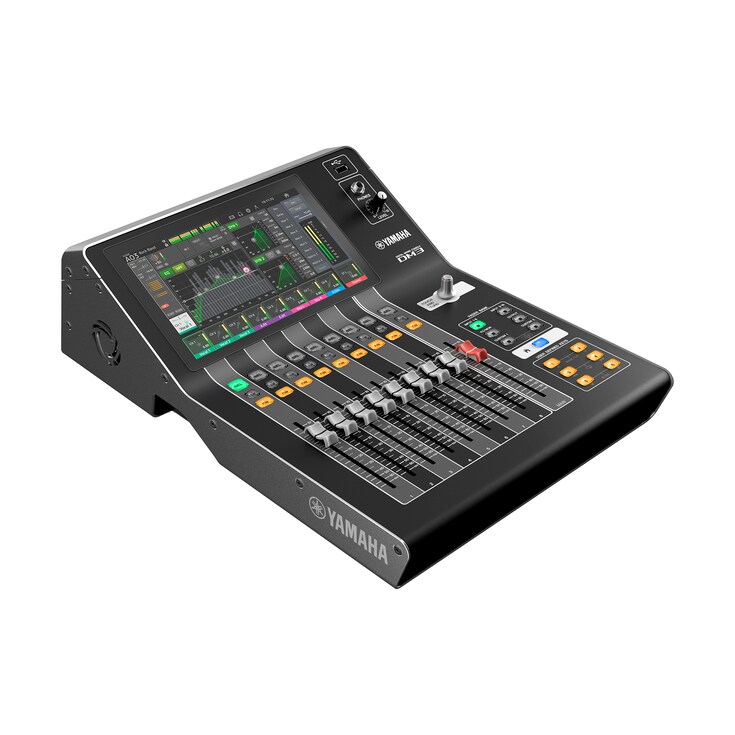

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.
More Information
Features
- 24 input channels (expandable workflow via digital routing)
- 16 mix buses + stereo bus + matrix outputs
- 9-inch touchscreen display for control
- 9 motorized faders for real-time mixing
- Built-in high-quality DSP (EQ, compressor, gate, delay, effects)
- USB audio interface (multitrack recording support)
- Dante audio networking support (DM3-D version)
- Compact and lightweight portable design
- Scene memory for saving and recalling settings
- Compatible with remote control apps (tablet/phone control)
Technical Specifications:
- 8 + 1 fader configuration
- 9-inch multi-touch screen
- Input mixing channels: 16 mono + 1 stereo + 2 FX return
- Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
- Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
- Dante: 16 inputs, and 16 outputs
- USB: 18 inputs, and 18 outputs
- 18 Effects, and GEQ on Mix 1-6 and Stereo channels
- Sampling rate: 48kHz/96kHz
- Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
- Net weight: 6.5 kg
