Description

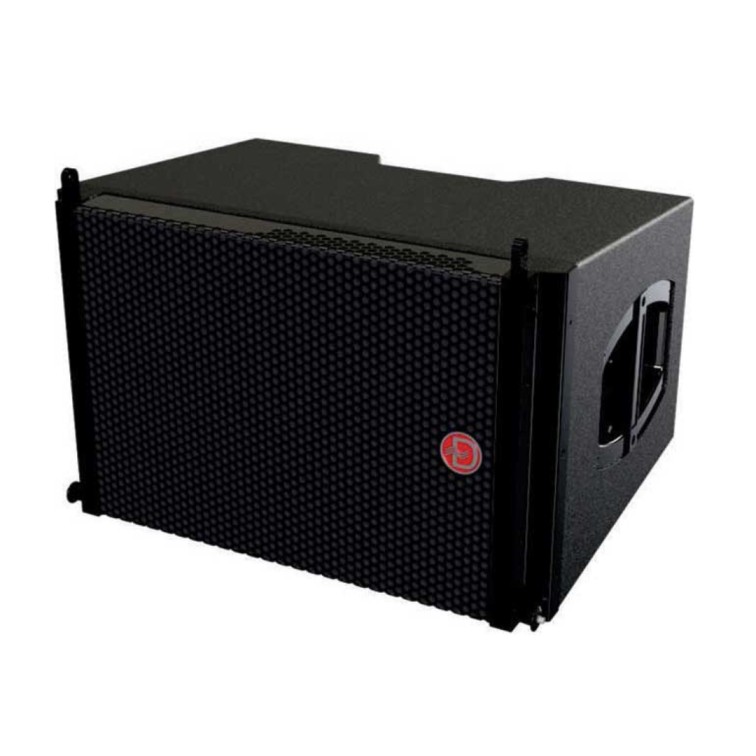

The Dynatech DLA-112 is a professional compact line array loudspeaker designed for touring sound, auditoriums, houses of worship, corporate events, and medium to large-scale sound reinforcement applications. Featuring a powerful 12-inch low-frequency driver and dual 1.4-inch compression drivers, the DLA-112 delivers outstanding vocal clarity, controlled dispersion, and high SPL performance. Its robust 18mm multilayer plywood enclosure ensures durability and reliability for both fixed installations and rental applications.
More Information
Key Features
- Professional 2-way line array loudspeaker
- 600W RMS power handling
- High-performance 12-inch LF driver
- Dual 1.4-inch HF compression drivers
- Bi-amped operation with switchable passive mode
- Maximum SPL of 134 dB
- Controlled 100° × 15° coverage pattern
- 18mm multilayer plywood cabinet
- Dual NL4R Speakon connectors
- Designed for touring and fixed installations
- Excellent speech intelligibility and musical performance
Technical Specifications
- Rated Power: 600W RMS
- LF Driver: 1 × 12″ Driver, 3″ Voice Coil, Ferrite Magnet
- HF Driver: 2 × 1.4″ Exit Compression Drivers, 1.75″ Voice Coil, Ferrite Magnet
- Crossover: Bi-Amplified, Switchable to 1.8kHz Passive
- Rated Impedance: 8Ω
- Maximum Peak Output: 134 dB
