Description

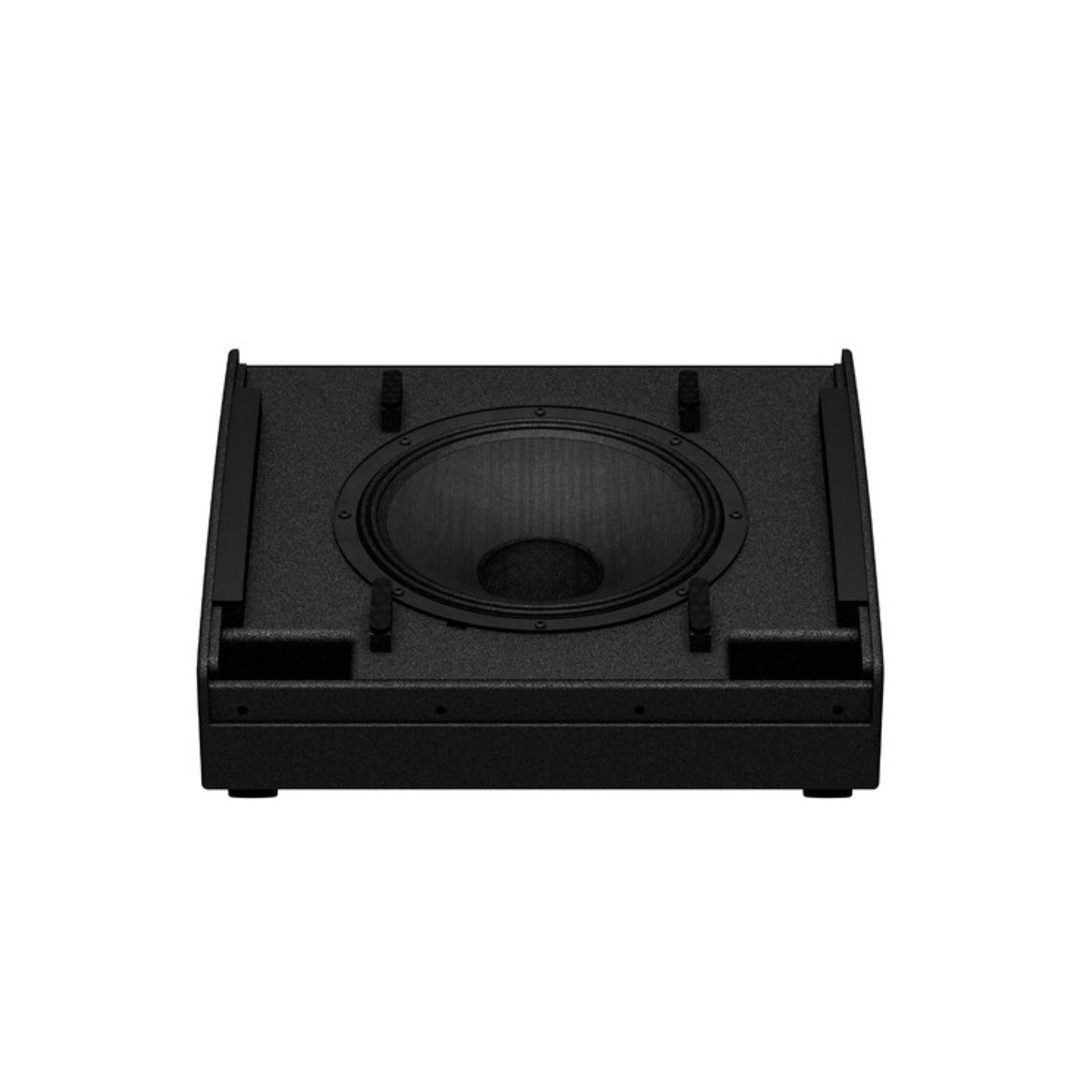

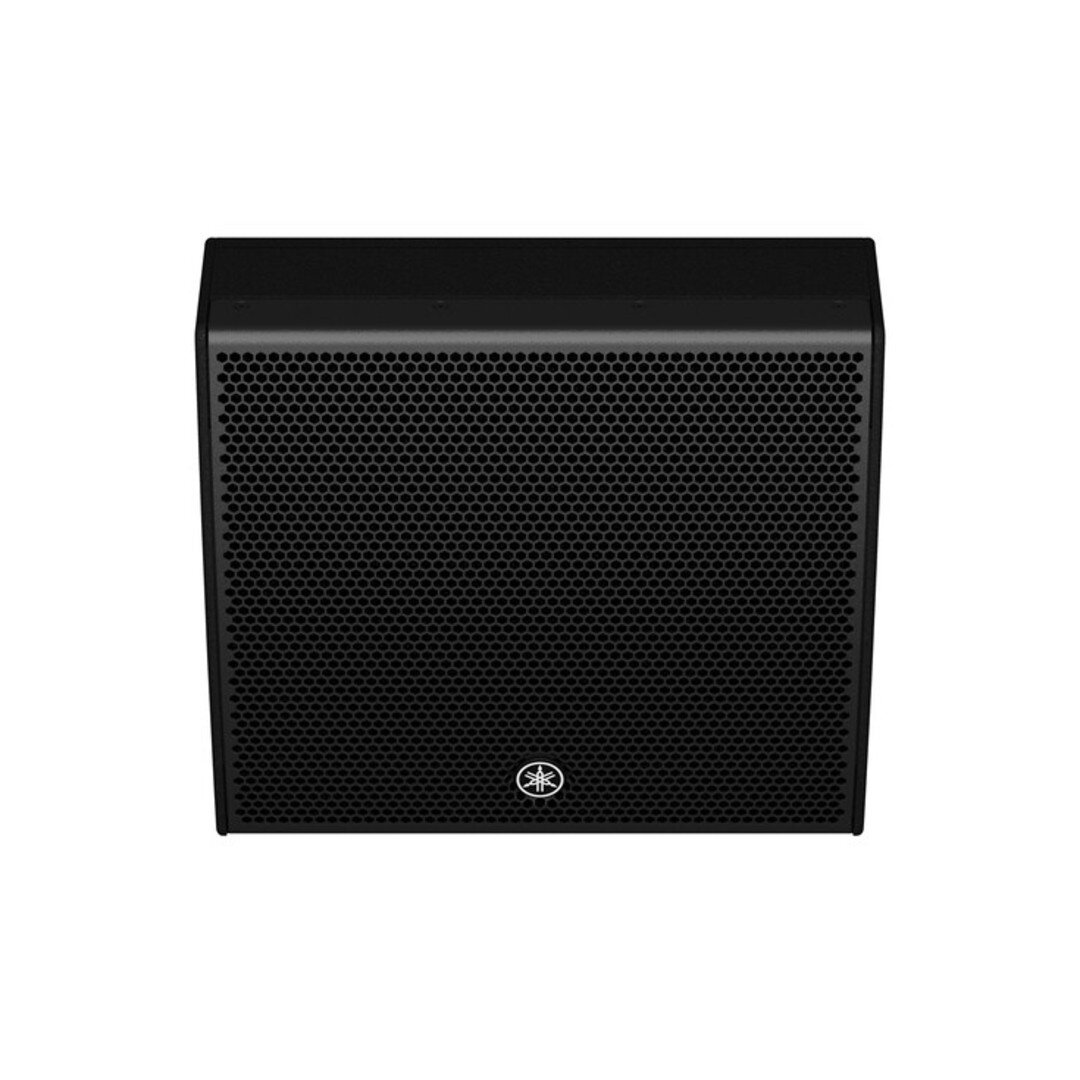

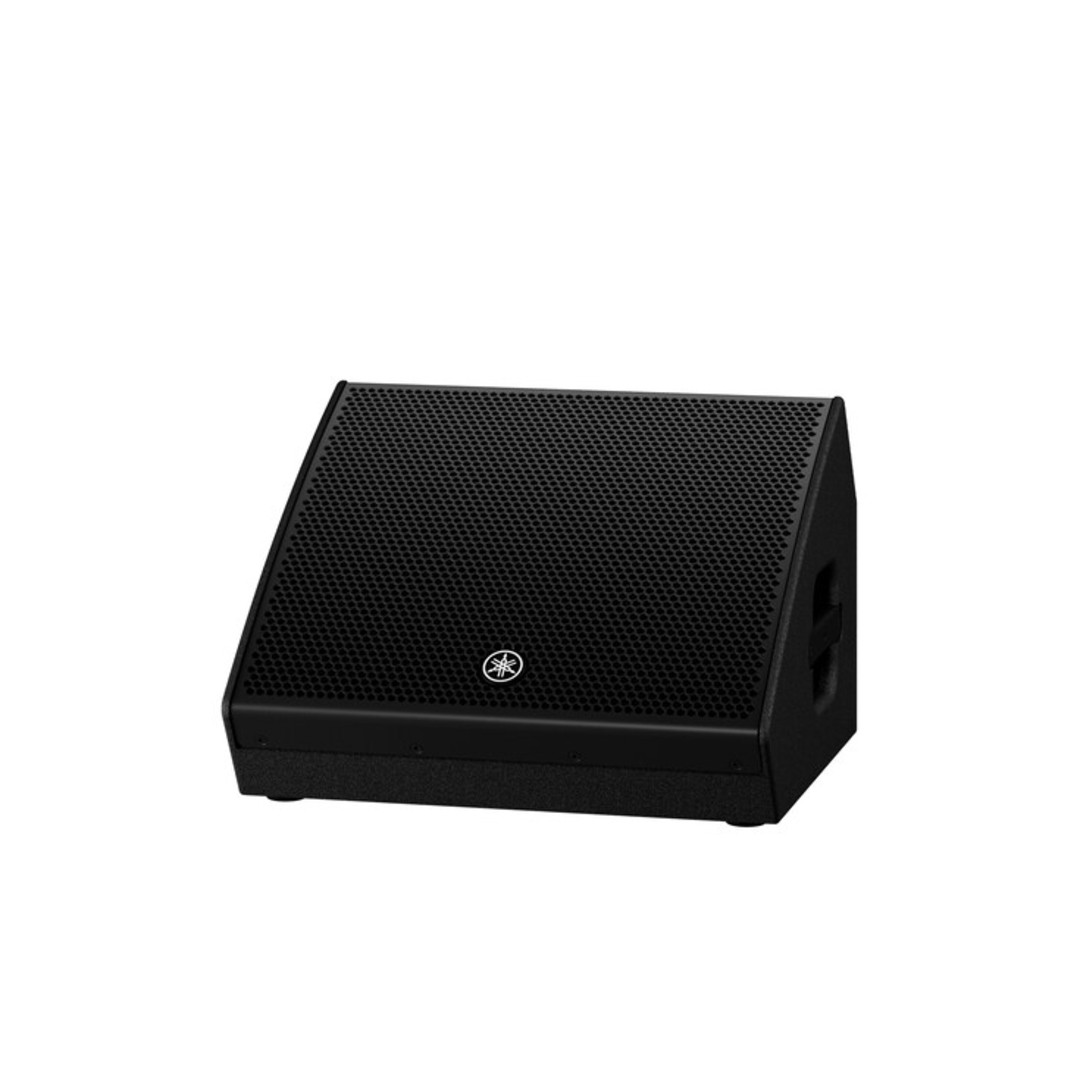

The DHR12M is a compact and powerful 2-way bi-amplified powered loudspeaker designed specifically for professional stage monitoring applications. Equipped with a 12-inch woofer and a 1.75-inch high-frequency driver in a coaxial configuration, it delivers accurate phase alignment, smooth frequency response, and exceptional clarity. Powered by a 1000W Class-D amplifier and advanced DSP processing, the DHR12M combines Yamaha’s premium audio performance with a durable plywood enclosure, providing reliable operation and outstanding sound quality for live performances and portable sound systems.
More Information
Key Features
- 12″ coaxial woofer and 1.75″ HF compression driver
- 1000W Class-D bi-amplified power system
- Coaxial design ensures smooth phase and frequency response
- Optimized for professional floor monitoring applications
- Proprietary FIR-X™ tuning with FIR filtering and corrective EQ
- High-performance DSP processing for enhanced sound quality
- Durable plywood cabinet minimizes unwanted vibration
- Polyurea-coated enclosure for superior scratch resistance
- Compact, low-profile monitor design
- Pole socket for stand-mounted operation
- Custom-designed horn for consistent coverage and clarity
Technical Specifications
- Speaker Type: 2-Way Bi-Amplified Powered Loudspeaker
- LF Driver: 12″ Woofer
- HF Driver: 1.75″ Compression Driver
- Configuration: Coaxial Driver Design
- Amplifier Type: Class-D
- Power Output: 1000 W
- DSP Processing: FIR-X™ Tuning with Corrective EQ
- Cabinet Material: Plywood
- Cabinet Finish: Polyurea Scratch-Resistant Coating
- Mounting Options: Floor Monitor Position, Pole Mount
- Horn Type: Constant Directivity Horn
- Application: Stage Monitoring, Live Sound Reinforcement, Portable PA
- Enclosure Design: Compact Low-Profile Monitor Cabinet
- Weight: Approx. 19.3 kg (42.5 lbs)
