Description

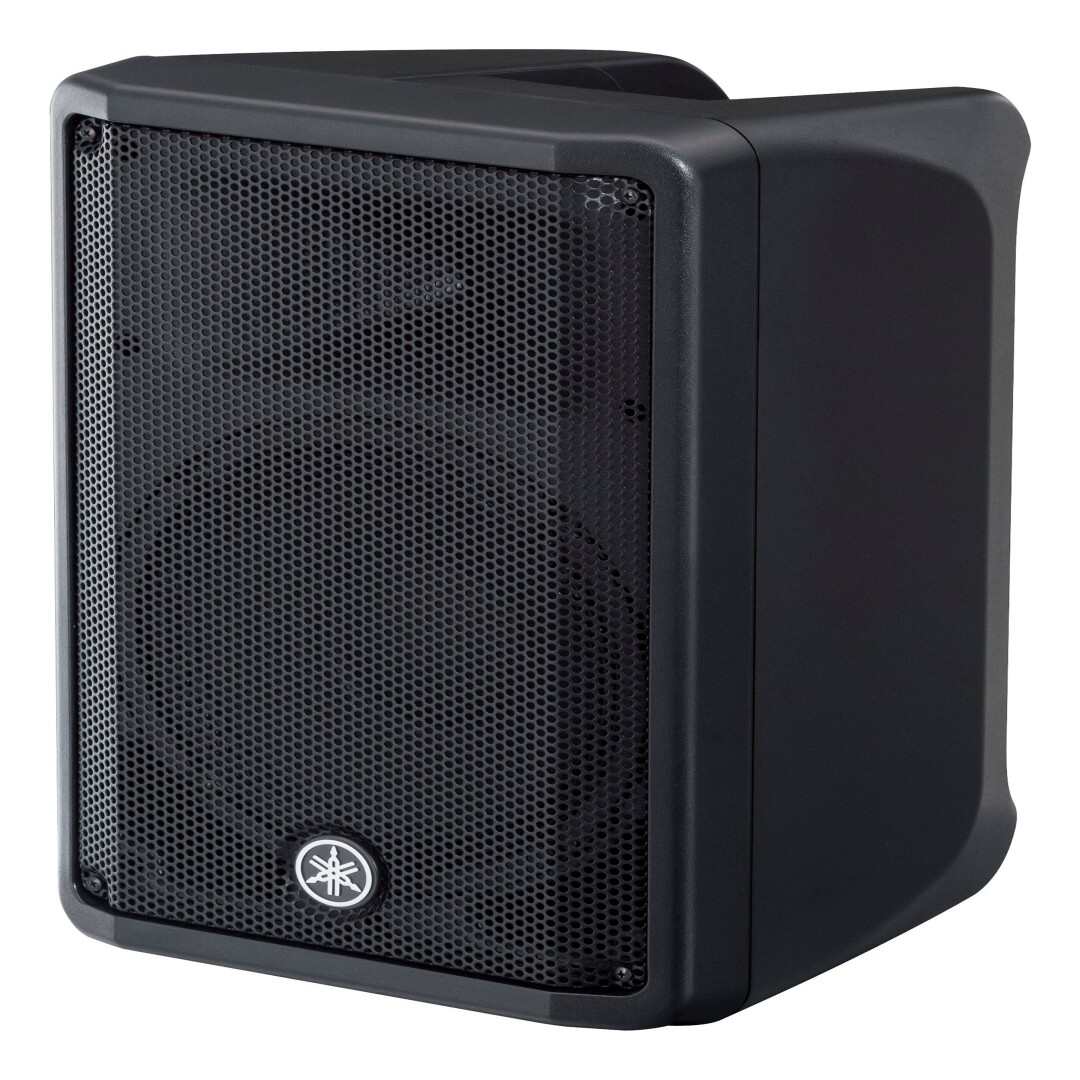

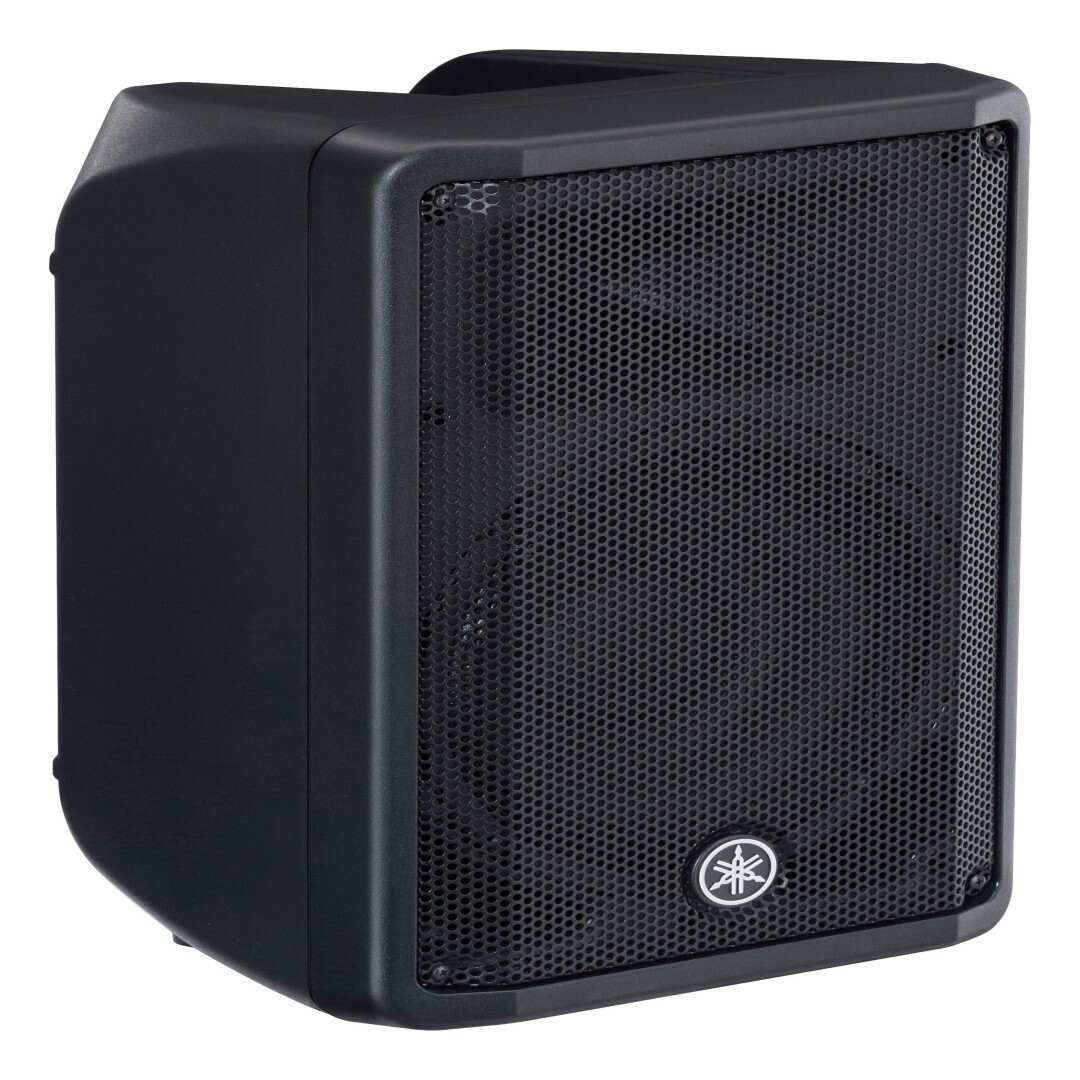

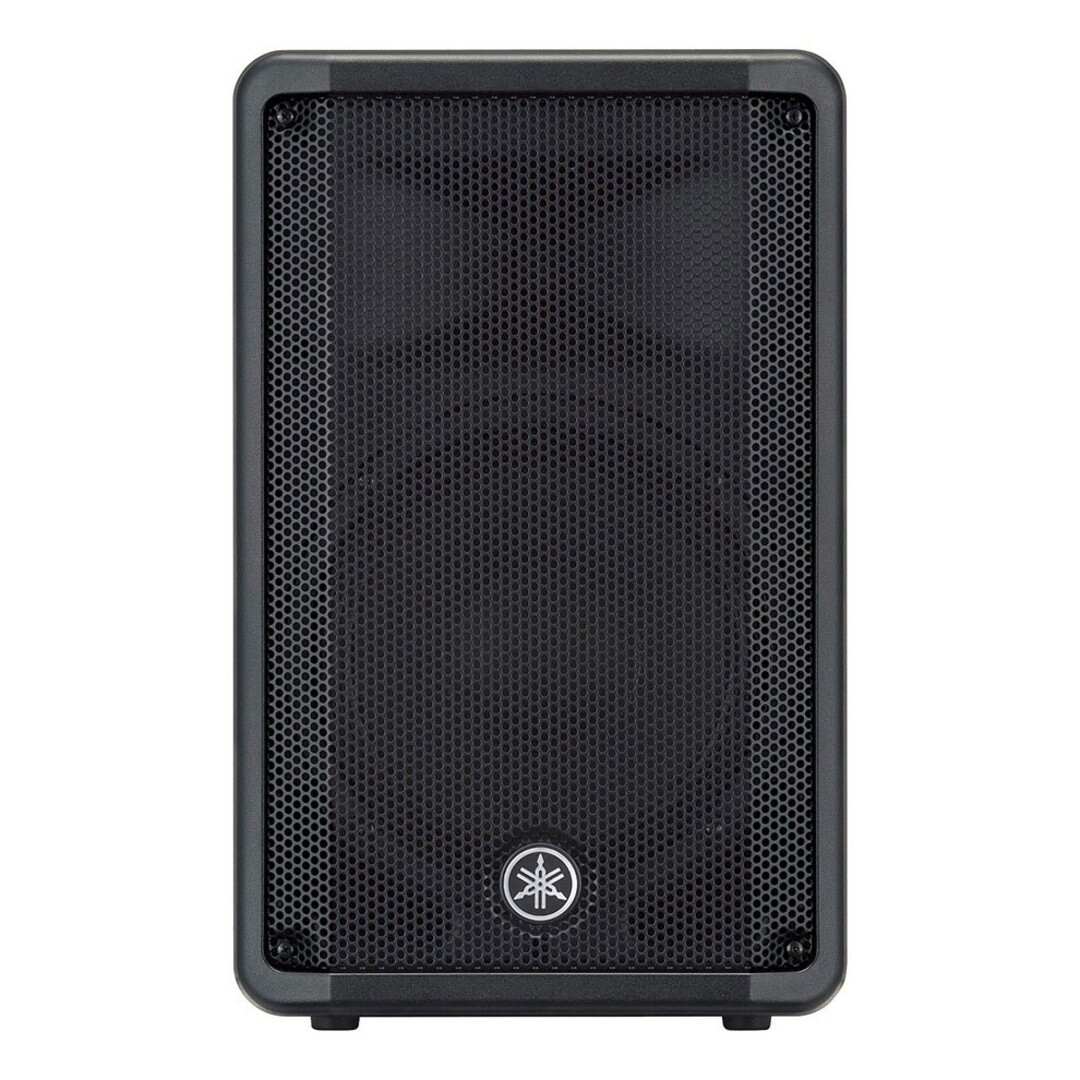

The DBR10 is the most compact and portable model in Yamaha’s DBR Series, delivering impressive power and clarity from a lightweight enclosure. Despite its small size, it is capable of producing up to 129 dB SPL, making it an excellent choice for portable PA systems, floor monitoring, installations, presentations, and a variety of utility sound reinforcement applications. Its versatile design and professional sound quality make it ideal for both live and installed environments.
More Information
Key Features
- 10″ woofer and 1.4″ compression driver
- Compact and lightweight design for easy transport
- Maximum SPL of up to 129 dB
- 1000W Class-D amplifier for powerful performance
- High-definition sound reproduction with excellent clarity
- Intelligent DSP processing for optimized audio and speaker protection
- Versatile applications including FOH, monitoring, and installations
- Flexible input connectivity for microphones, instruments, and audio sources

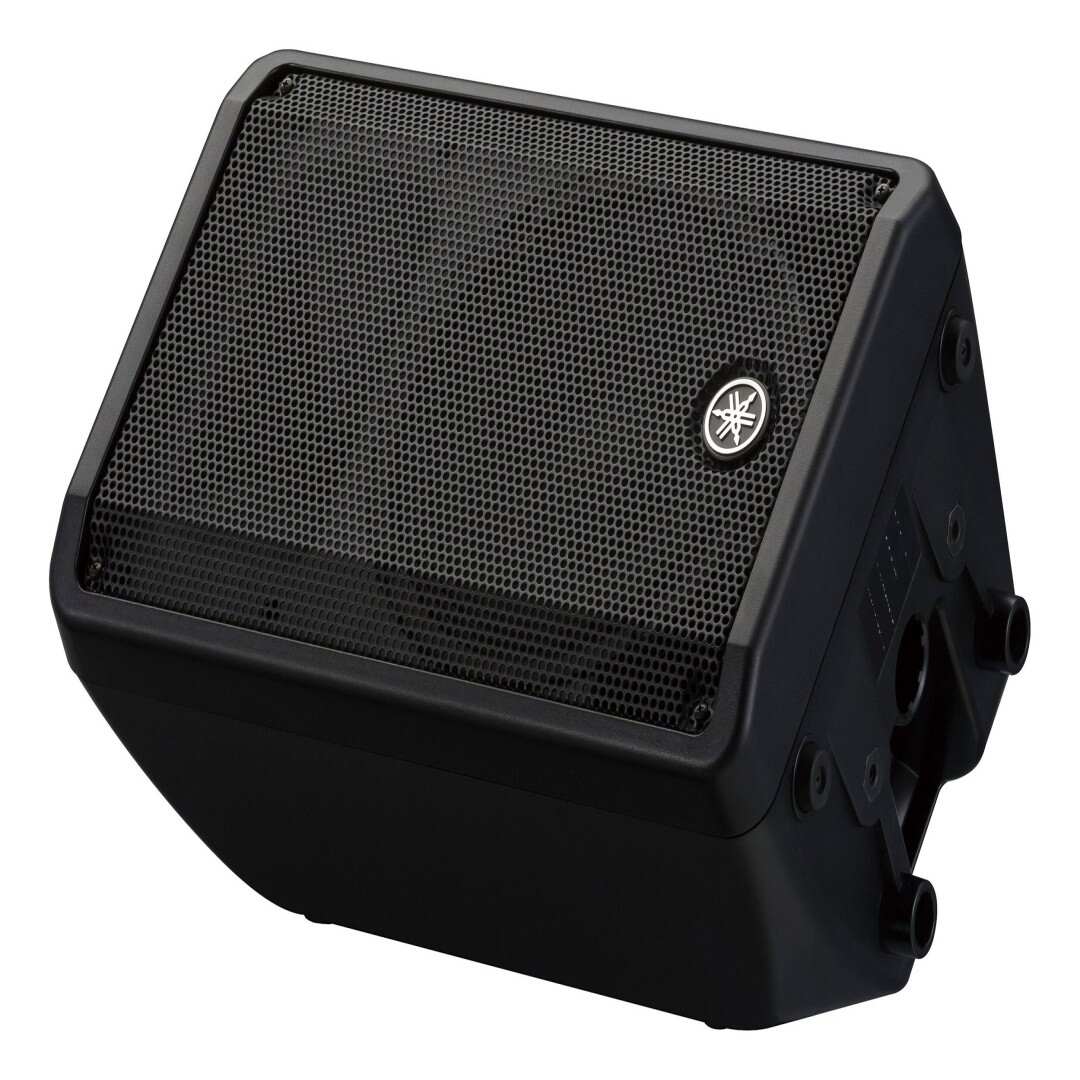

- Pole-mountable and floor-monitor compatible design
Technical Specifications
- Speaker Type: 2-Way Powered Loudspeaker
- LF Driver: 10″ Woofer
- HF Driver: 1.4″ Compression Driver
- Frequency Range: 55 Hz – 20 kHz
- Maximum SPL: 129 dB
- Amplifier Type: Class-D
- Power Output: 1000 W (Dynamic)
- Coverage Angle: 90° x 60°

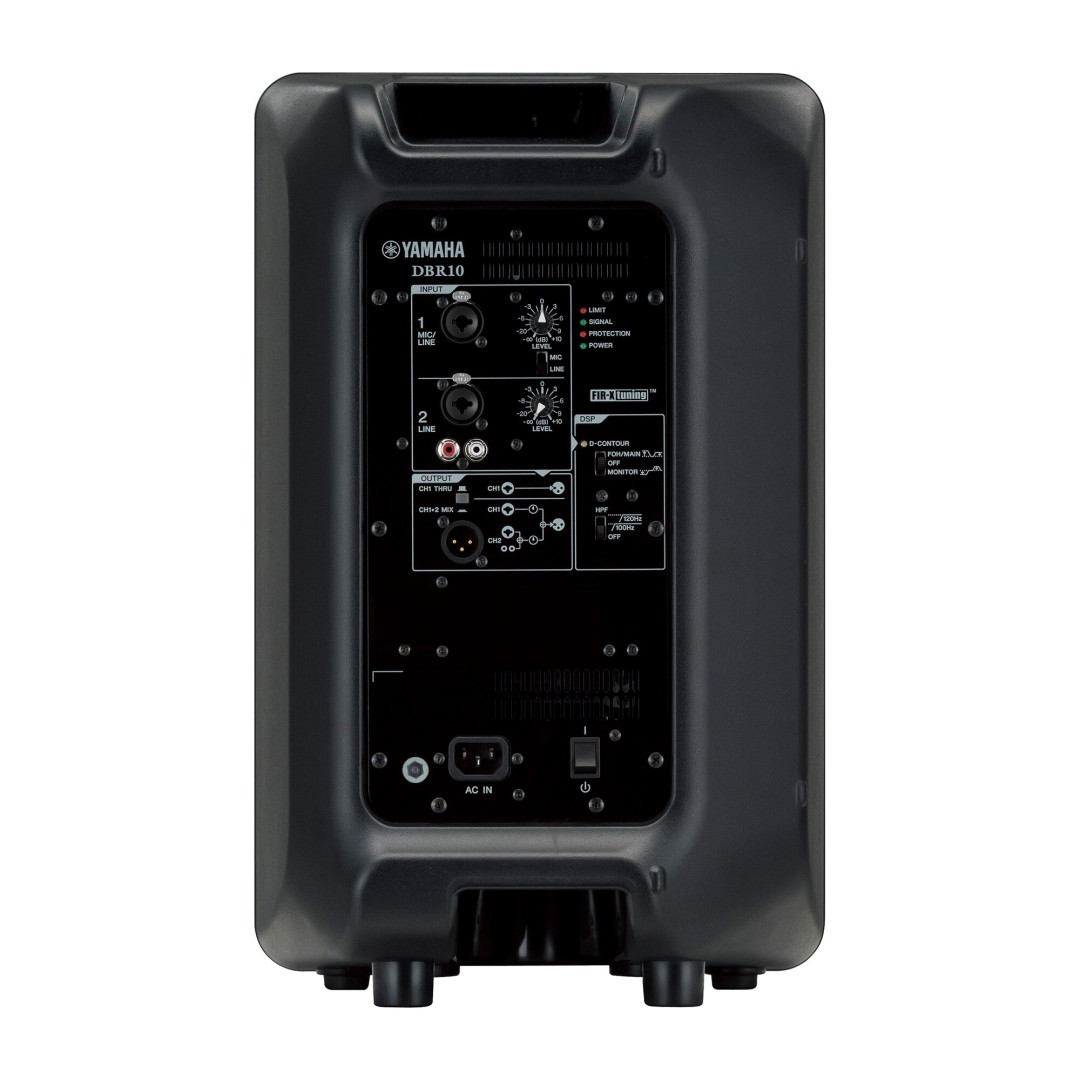

- Inputs: XLR, TRS, RCA
- Enclosure Material: Durable Plastic Cabinet
- Mounting Options: Pole Mount, Floor Monitor Position
- Weight: Approx. 10.5 kg (23.1 lbs)
