Description

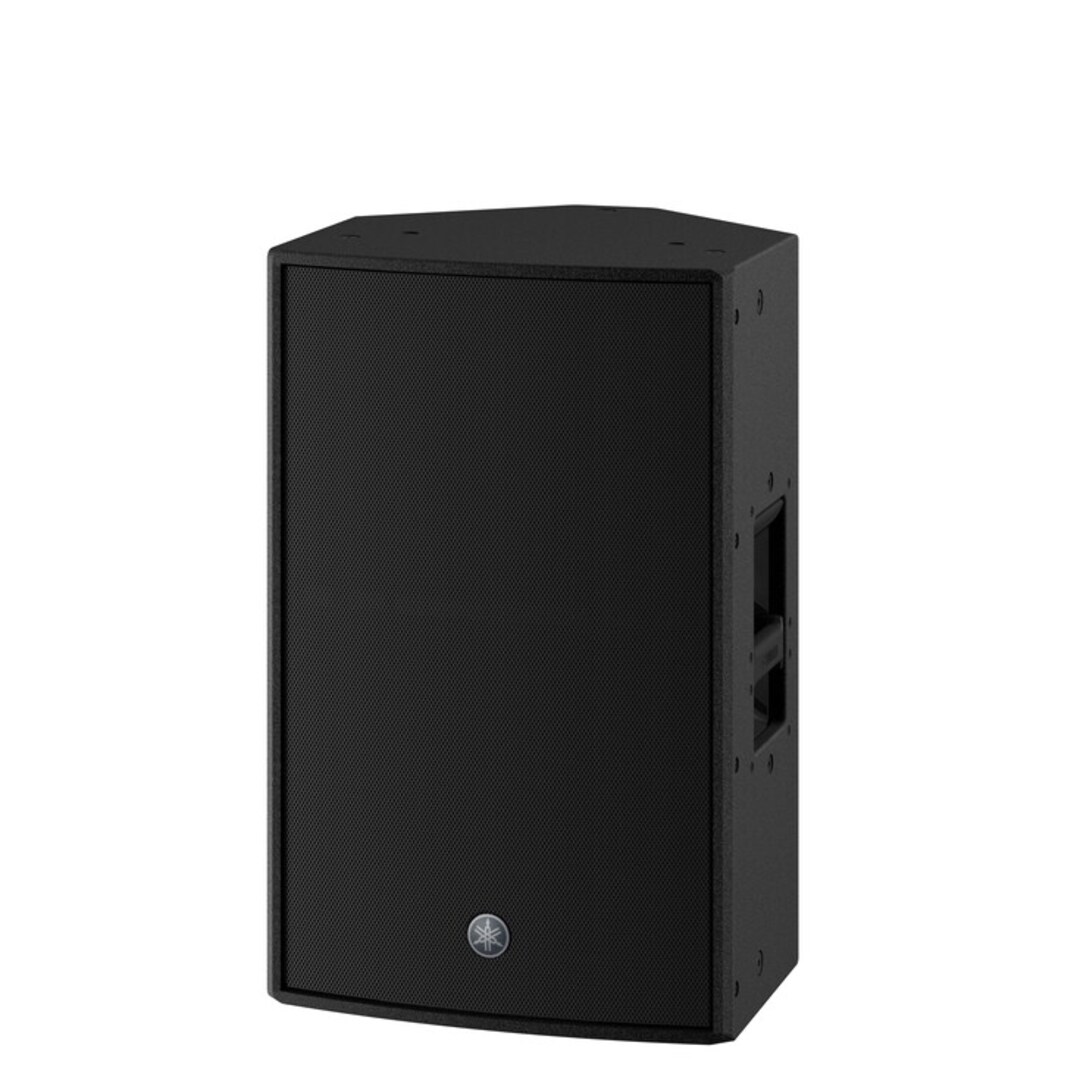

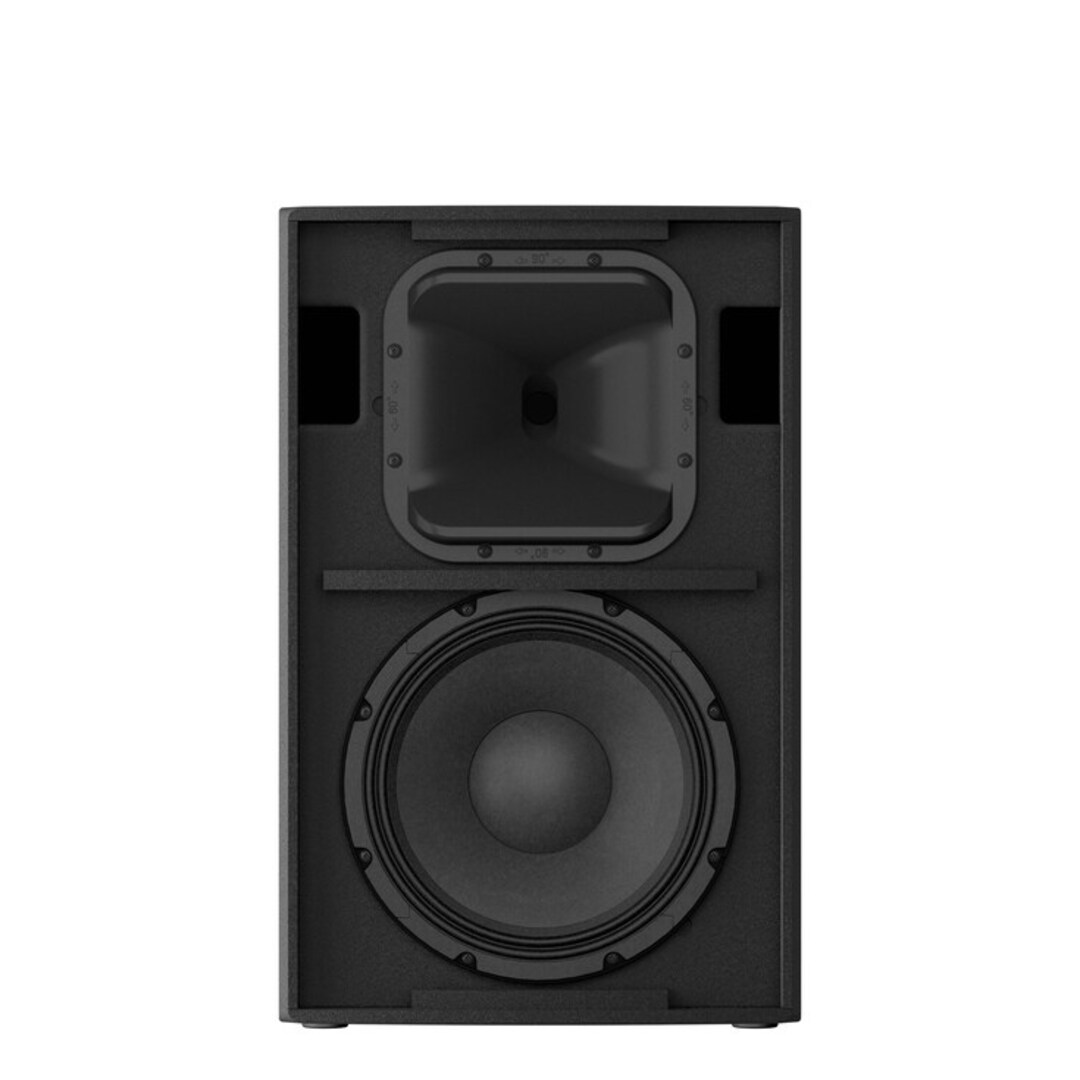

The Yamaha CZR12 is a premium 2-way passive loudspeaker designed to deliver exceptional sound quality, high power handling, and reliable performance in both portable and installed sound applications. Featuring a powerful 12-inch low-frequency driver and a 2-inch high-frequency compression driver, the CZR12 produces crystal-clear vocals, detailed midrange response, and impressive bass performance from a compact enclosure.
Equipped with Yamaha’s proprietary Wide Dispersion Constant Directivity (CD) Waveguide Horn, the CZR12 ensures uniform sound coverage across the audience area. Its lightweight yet rugged plywood cabinet with premium Polyurea coating offers excellent durability for touring and fixed-installation environments. Ideal for live music venues, clubs, houses of worship, auditoriums, and corporate events, the CZR12 combines professional-grade performance with flexible deployment options.
Key Features
- Premium 2-way passive loudspeaker design
- 12-inch low-frequency woofer
- 2-inch high-frequency compression driver
- Yamaha Wide Dispersion CD Waveguide Horn
- High power handling of 800W Program
- Bi-amp operation capable
- Crystal-clear sound reproduction with powerful bass response

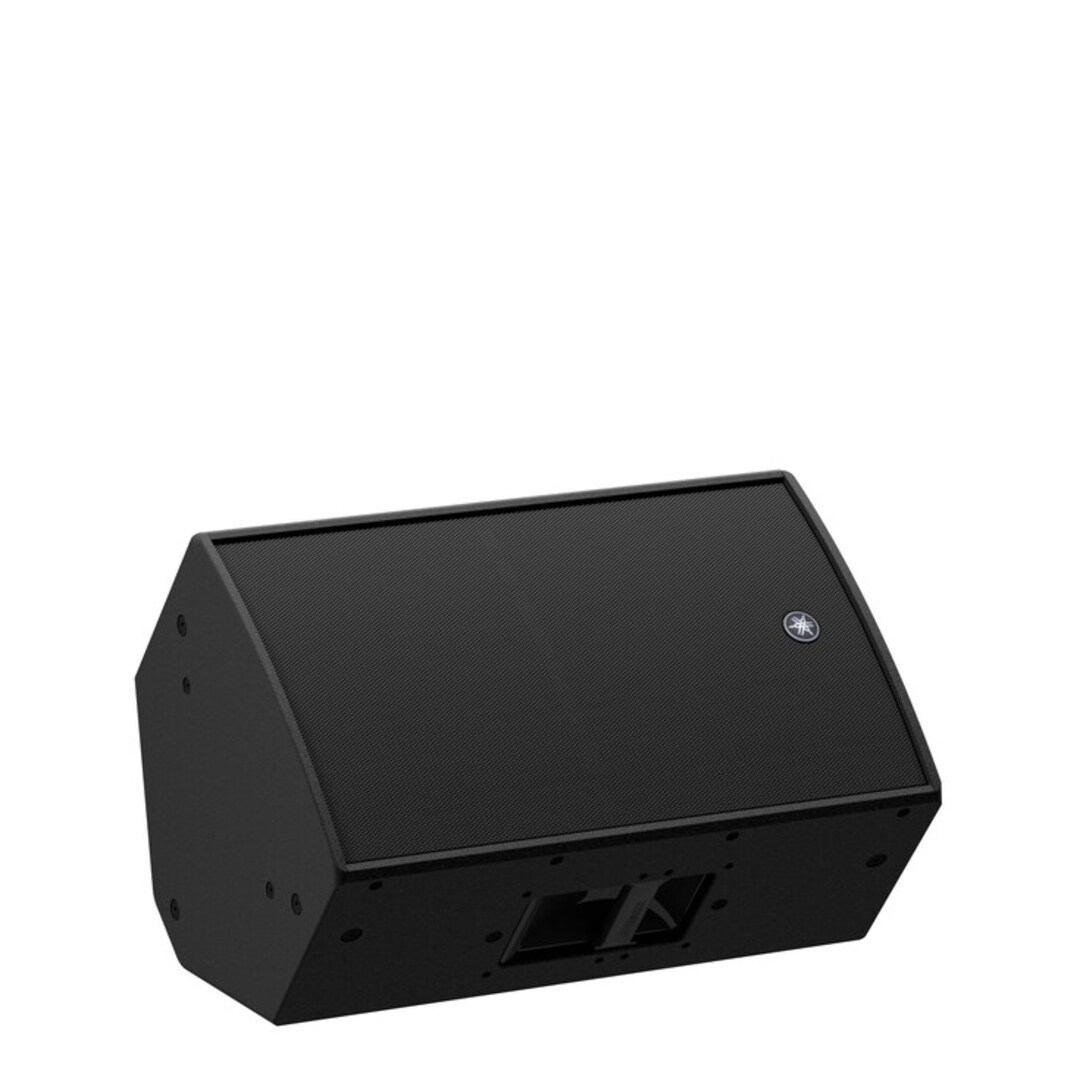

- Floor monitor configuration with mirrored setup capability
- Lightweight and acoustically optimized plywood enclosure
- Durable premium-grade Polyurea coating
- Dual-angle pole socket for flexible mounting
- Rotatable horn for horizontal or vertical installations
- Multiple rigging options with optional U-brackets
- Optional protective speaker cover (SPCVR-DZR12)

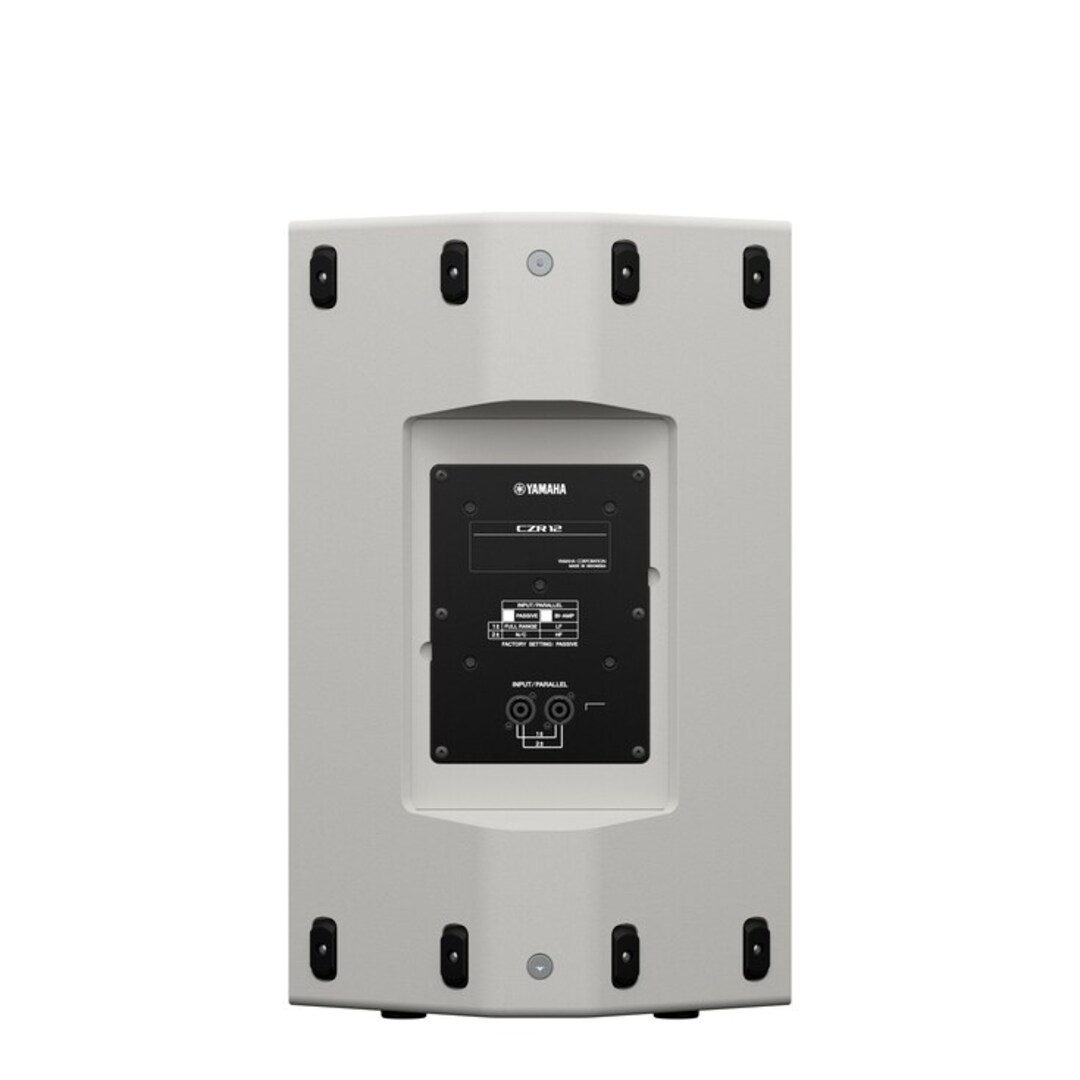

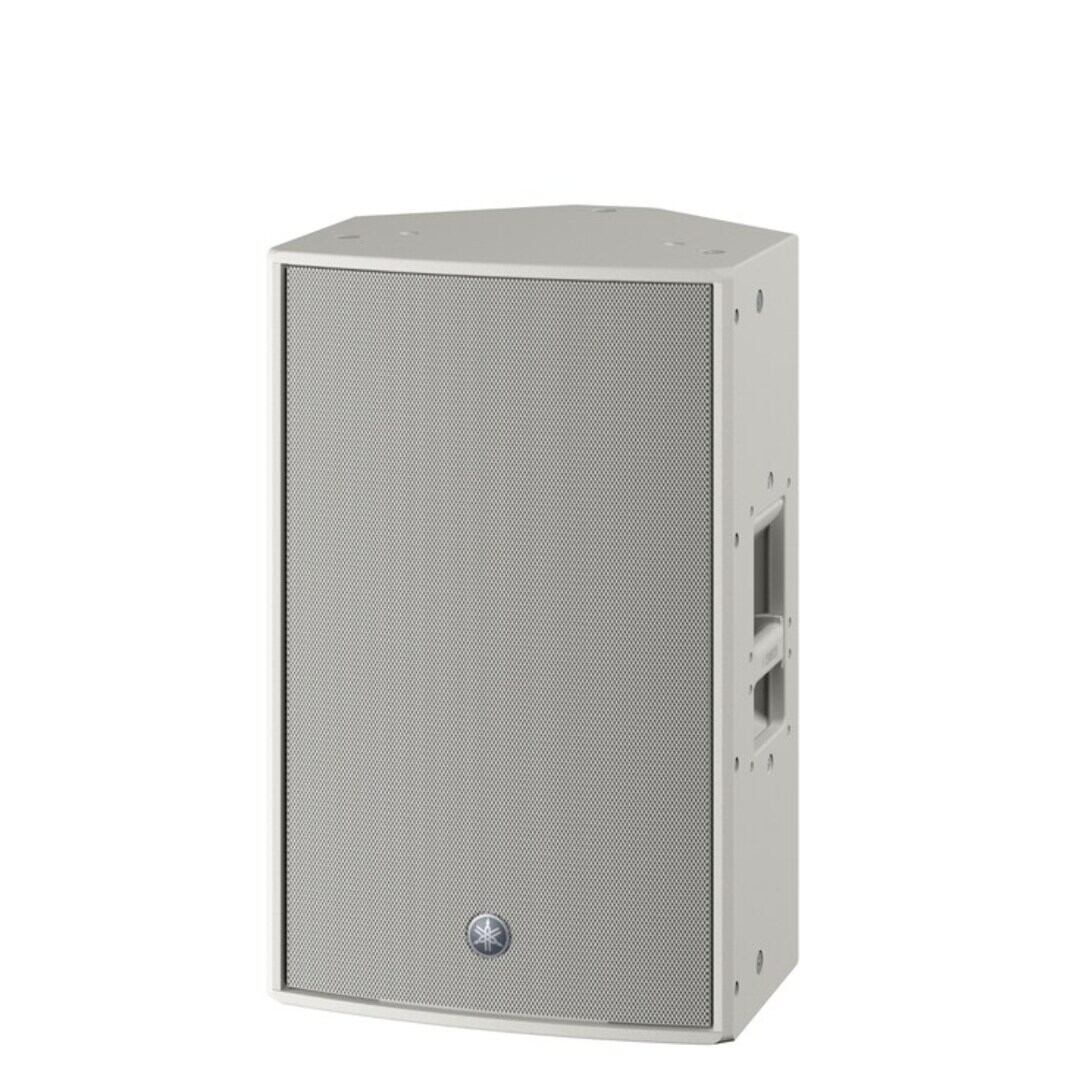

- Available in Black (CZR12) and White (CZR12W) finishes
- Suitable for portable and permanent installation applications
Technical Specifications
- System Type: 2-Way Passive Loudspeaker
- LF Driver: 12-inch Cone Woofer
- HF Driver: 2-inch Compression Driver
- Horn Type: Wide Dispersion CD Waveguide Horn
- Frequency Range (-10 dB): 47 Hz – 20 kHz
- Nominal Coverage: 90° Horizontal × 50° Vertical
- Nominal Impedance: 8 Ω
- Sensitivity (1W/1m): 96 dB SPL
- Maximum SPL: 131 dB Peak
- Power Handling (Noise): 400 W
- Power Handling (Program): 800 W
- Power Handling (Peak): 1600 W
- Bi-Amp Capability: Yes

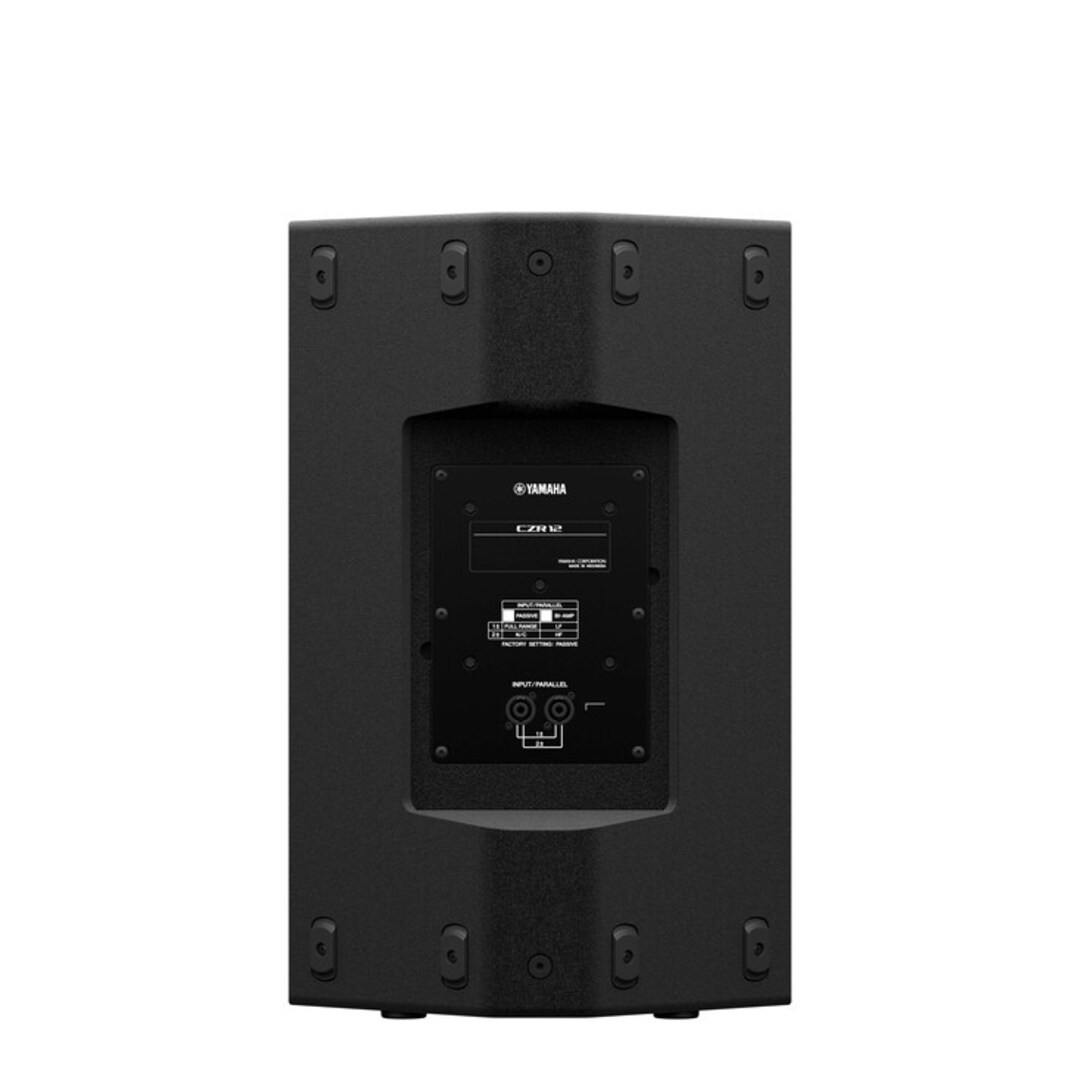

- Input Connectors: SpeakON NL4MP ×2
- Cabinet Material: Premium Plywood
- Finish: Durable Polyurea Coating
- Pole Mount: Dual-Angle Pole Socket
- Monitor Configuration: Supported
- Rigging Points: Multiple M10 Rigging Points
- Horn Rotation: Rotatable
- Width: 369 mm
- Height: 600 mm
- Depth: 400 mm
- Net Weight: 19.6 kg (43.2 lbs)
- Optional Cover: SPCVR-DZR12
- Optional Brackets: UB-DZR12H, UB-DZR12V
- Available Colors: Black (CZR12), White (CZR12W)
- Applications: Live Sound, Festivals, Clubs, Houses of Worship, Corporate Events, Auditoriums, Stage Monitoring, and Fixed Installations.
