Description

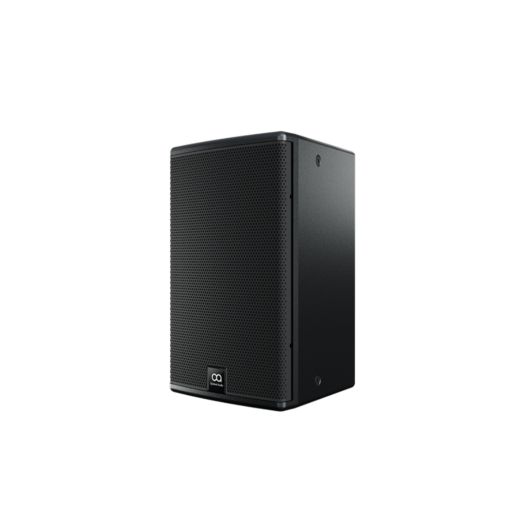

Cuboid 8 is a compact two-way passive loudspeaker engineered to deliver professional audio performance in a space-efficient form factor. Featuring an 8-inch low-frequency driver and precision compression driver, Cuboid 8 provides clear speech reproduction, detailed music playback, and controlled sound coverage for a wide range of installed audio applications. Its compact wooden cabinet, rotatable horn design, and flexible mounting options make it ideal for hospitality venues, corporate spaces, houses of worship, and commercial audio installations.
More Information
Key Features
• Compact wooden cabinet with professional audio performance
• Two-way passive loudspeaker configuration for clear and detailed sound
• Rotatable high-frequency horn for flexible installation orientation
• Portrait or landscape mounting options
• Controlled dispersion for consistent sound coverage
• High output capability for background music and speech applications
• Durable trapezoidal wooden cabinet construction
• Premium steel grille with protective scrim backing
• Available in black finish with white finish available by special order
Technical Specification
• Type: Two-way, Full Range, Passive Loudspeaker
• Frequency Response: 90Hz – 18kHz (±3dB), -10dB @ 62Hz
• Low Frequency Driver: 8″ (200mm) Ferrite Motor System
• High Frequency Driver: 1″ (25mm) Exit / 1″ (25mm) Voice Coil Polymide Dome Compression Driver
• Rated Power: 200W AES / 800W Peak
• Nominal Impedance: 8 Ohms
• Sensitivity: 92dB (1W/1m)
• Maximum SPL: 115dB Continuous / 121dB Peak
• Crossover Frequency: 2.9kHz Passive
• Dispersion: 90° Horizontal × 50° Vertical (User Rotatable)
• Enclosure: Trapezoidal Wooden Cabinet
• Finish: Black Textured Paint / White Finish Available by Special Order
• Protective Grille: Black Perforated Steel with Scrim Cloth Backing

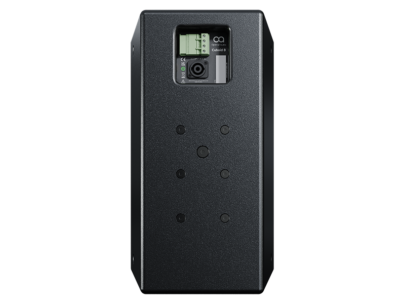

• Connectors: 1 × NL4, 1 × 4-Pin Euroblock
• Pin Connections: NL4 Input Only (1+/1-), Euroblock with Input & Link Connections
• Mounting Points: 16 × M8 Inset Bolts
• Dimensions: 256mm (W) × 422.5mm (H) × 261mm (D)
• Weight: 10kg
