Description

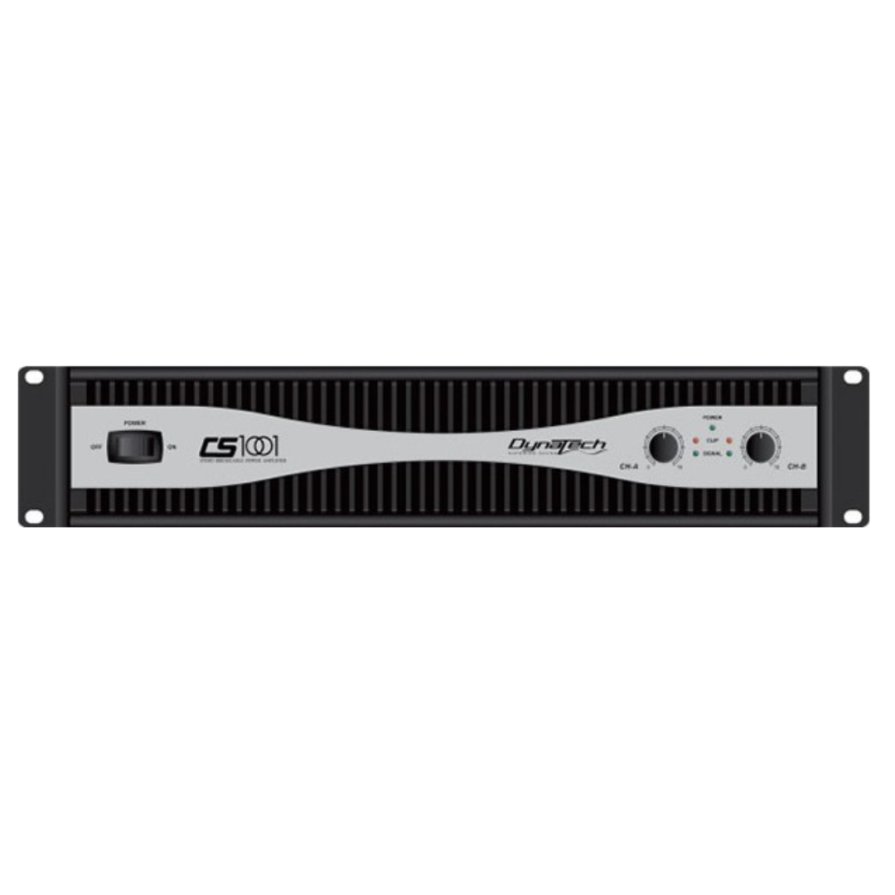

The Dynatech CS-1001 is a compact professional Class-AB power amplifier designed for small PA systems, conference rooms, educational institutions, houses of worship, background music systems, and portable audio applications. With reliable performance, low-noise operation, and efficient cooling, the CS-1001 provides clear and consistent audio reproduction for everyday professional sound requirements.
More Information
Key Features
- Class-AB amplifier technology
- Stereo and Bridge mode operation
- High damping factor (>200:1)
- Temperature-controlled dual cooling fans
- Balanced XLR input and XLR line output
- Professional rack-mount design
- Wide frequency response from 20Hz to 20kHz
- Signal-to-noise ratio greater than 100dB
- Binding post speaker outputs
- Reliable continuous-duty operation
- Suitable for speech and music applications
- Compact and lightweight construction
Technical Specifications
- Output Power @ 8Ω Stereo: 155W × 2 RMS
- Output Power @ 4Ω Stereo: 200W × 2 RMS
- Output Power @ 2Ω Stereo: 260W × 2 RMS
- Bridge Power @ 8Ω: 440W RMS
- Bridge Power @ 4Ω: 550W RMS
