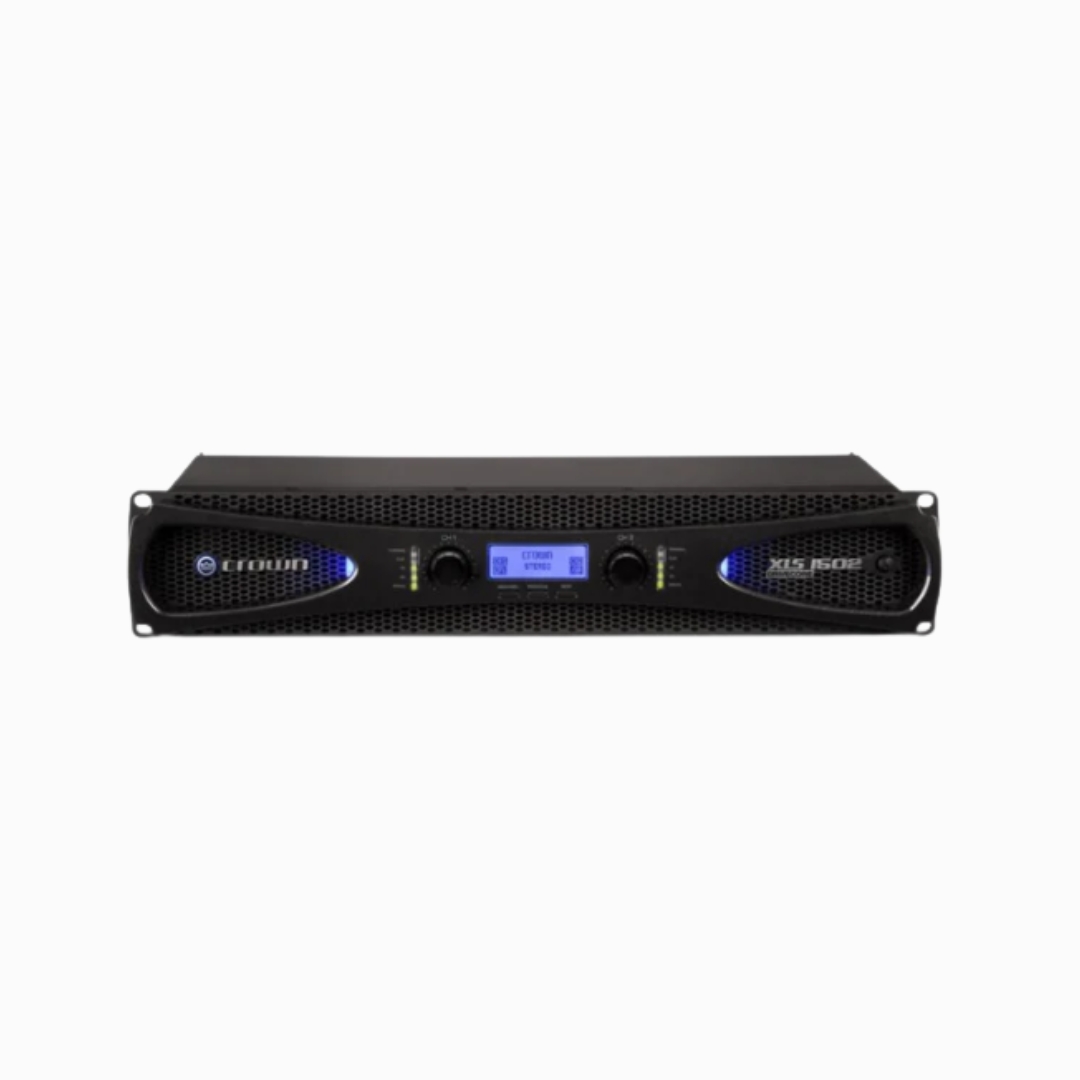

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

More Information

  • – Class D amp with Crown’s ultra-efficient Drive
  • – Core technology weighs less than 11 lb(5 kg)
  • – Higher DSP capabilities: More control; has band pass filter per channel
  • – Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • – Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
  • – Set sleep mode after specified time without having to press a button
  • – Security setting disables menu buttons; menu locked/unlocked by entering combination
  • – System reset allows factory settings to be restored
  • – Remote power trigger
  • – Peakx Limiters provide maximum output while protecting your speakers
  • – XLR, 1/4″, RCA inputs provide flexibility
  • – Integrated PureBand™ Crossover System for better performance and control
  • – Efficient forced-air fans prevent excessive thermal buildup

Technical Specification



XLS SERIES XLS 1002 XLS 1502 XLS 2002 XLS 2502
Product type Two-channel, 350W @ 4Ω Power Amplifier Two-channel, 525W @ 4Ω Power Amplifier Two-channel, 650W @ 4Ω Power Amplifier Two-channel, 775W @ 4Ω Power Amplifier
Dimensions 19″ (48.3 cm) x 3.5″ (8.9 cm) x 7.7″ (19.6 cm) 19″ (48.3 cm) x 3.5″ (8.9 cm) x 7.7″ (19.6 cm) 19″ (48.3 cm) x 3.5″ (8.9 cm) x 10.7″ (21.2 cm) 19″ (48.3 cm) x 3.5″ (8.9 cm) x 10.7″ (21.2 cm)
THD < 0.5% < 0.5% < 0.5% < 0.5%
Frequency Response +0dB, -1dB +0dB, -1dB +0dB, -1dB +0dB, -1dB
Sensitivity 1.4Vrms 1.4Vrms 1.4Vrms 1.4Vrms
Weight 8.6 lbs (3.9 kgs) 8.6 lbs (3.9 kgs) 10.8 lbs (4.9 kgs) 10.8 lbs (4.9 kgs)
Signal to Noise > 97dB (at .775Vrms sensitivity, 6dB lower) >103dB (at .775Vrms, 6dB lower) >103dB (at .775Vrms, 6dB lower) >103dB (at .775Vrms, 6dB lower)
Crosstalk At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB
Intermodulation Distortion < 0.3% < 0.3% < 0.3% < 0.3%
Damping Factor > 200 > 200
