Description

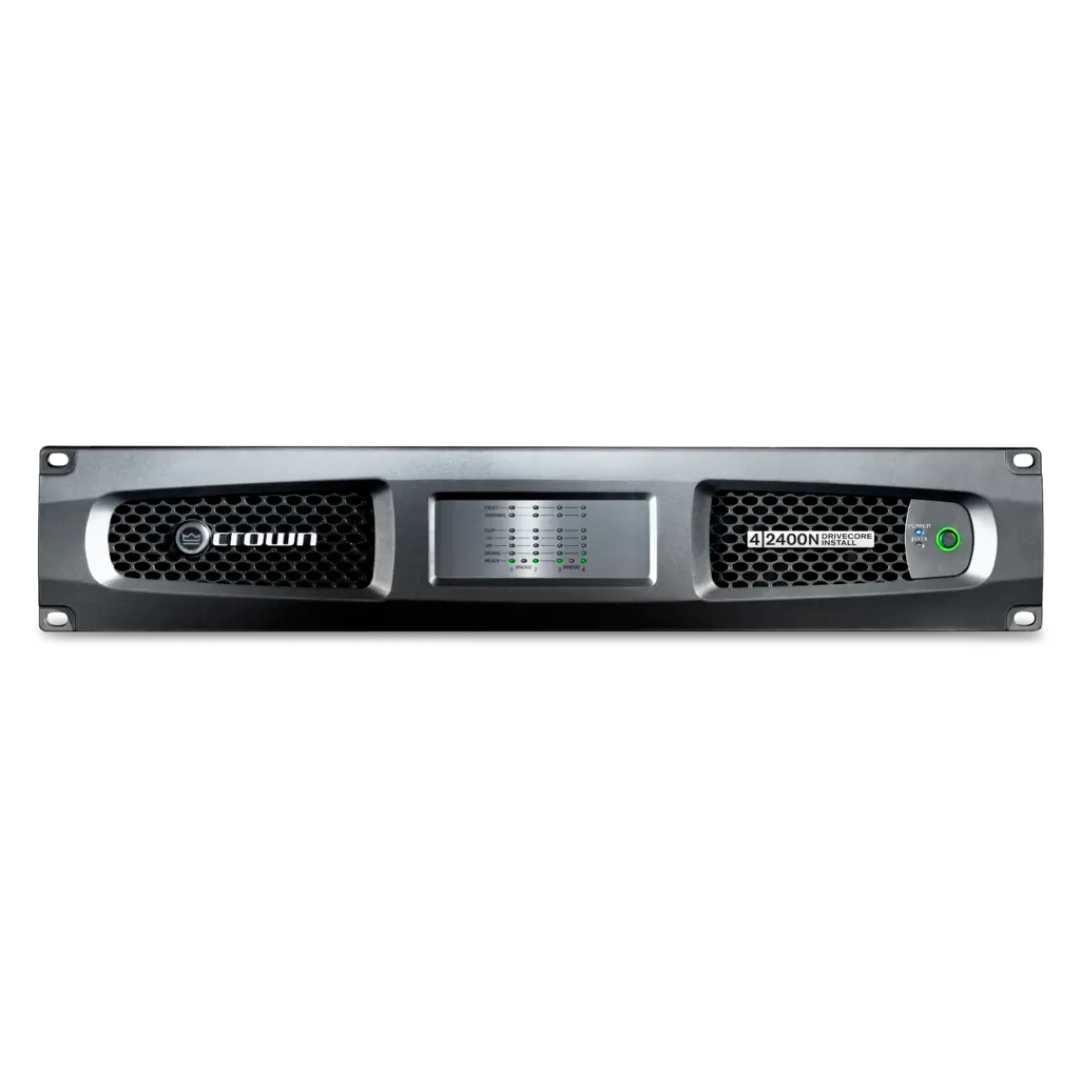

The Crown DCi 4|2400N is a high-performance four-channel network power amplifier engineered for demanding installed audio applications. Delivering 2400W per channel at 4Ω, it combines powerful amplification, BLU-Link digital audio transport, advanced DSP processing, and comprehensive network control in a compact 2RU chassis. Designed for large-scale commercial, hospitality, transportation, education, and life-safety systems, the DCi 4|2400N provides exceptional flexibility, reliability, and system integration capabilities.
With support for both analog and digital audio inputs, HiQnet™ network control, programmable GPIO, and powerful loudspeaker management tools, the amplifier simplifies system design while ensuring superior audio performance.
Key Features
- Four-channel power amplifier with 2400W per channel @ 4Ω
- Integrated BLU-Link digital audio networking
- Supports analog and digital audio inputs
- Priority input routing with automatic source failover
- HiQnet™ network monitoring and remote control
- Advanced onboard DSP processing
- LevelMAX™ limiters for loudspeaker protection
- Input and output EQ processing
- Crossover configuration and speaker management
- Delay processing for system alignment
- Matrix mixer functionality
- Speaker line monitoring capability
- Programmable GPIO ports for automation and system control
- Supports low-impedance and 70V/100V distributed audio systems
- Bridgeable channel pairs for higher power applications
- Variable-speed forced-air cooling system
- Ideal for professional installed audio and life-safety applications
Technical Specifications
Model: Crown DCi 4|2400N
Amplifier Type: Network Power Amplifier with BLU-Link
Output Channels: 4
Power Output: 2400W per channel @ 4Ω
Frequency Response: ±0.25 dB (20 Hz – 20 kHz)
Total Harmonic Distortion (THD): 0.35%
Damping Factor: >5000 (20 Hz – 100 Hz)
Load Impedance (Stereo Mode): 2Ω – 16Ω, 70V/100V
Load Impedance (Bridge Mode): 4Ω – 16Ω, 140V/200V
DSP Functions:
- LevelMAX™ Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Mixer
- Speaker Line Monitoring
Audio Networking: BLU-Link
Network Control: HiQnet™
GPIO: Programmable General Purpose I/O
Cooling System: Variable-speed forced-air cooling (front-to-back airflow)
AC Power Requirement: 100–240V AC, 50/60 Hz
Power Connector: 32A PowerCON
Dimensions (W × H × D):
483 × 89 × 483 mm
(19 × 3.5 × 19 in)
Weight: 13.15 kg (29.7 lbs)
