Description

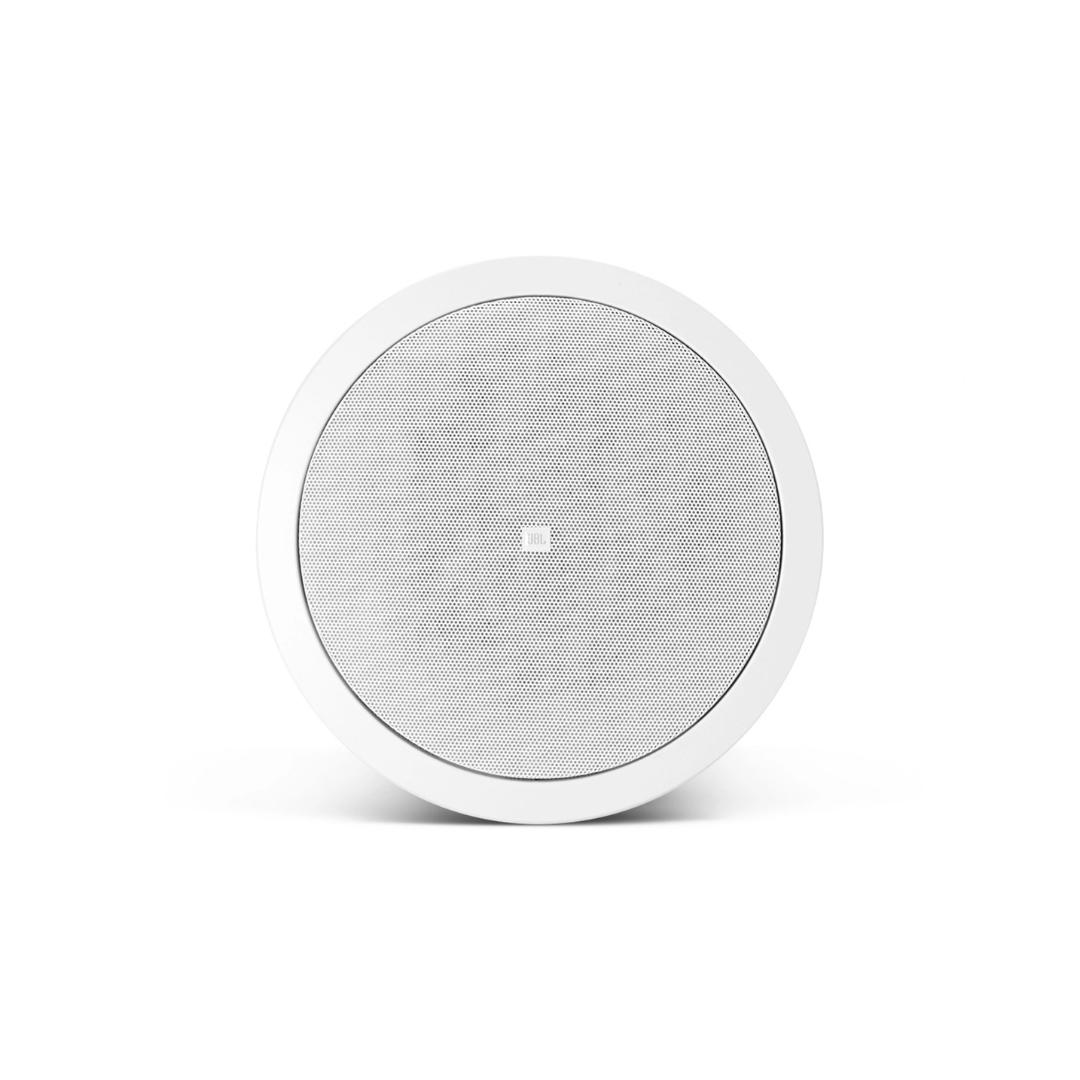

The Control 26-DT is a compact ceiling loudspeaker transducer assembly designed to upgrade or replace standard 8-inch ceiling speaker drivers in existing backcan installations. Engineered to fit standard ceiling backcans designed for 200 mm (8 in) drivers, it provides premium audio performance while simplifying retrofit and upgrade projects.
The assembly comes complete with the transducer, crossover network, and built-in transformer, offering an all-in-one solution for distributed audio systems. Its coaxial design combines a 6.5-inch woofer with a titanium-coated tweeter to deliver clear, natural sound with excellent speech intelligibility and music reproduction.
An advanced crossover network ensures smooth frequency response and consistent coverage throughout the listening area, while the integrated 70V/100V transformer makes the Control 26-DT suitable for commercial background music, foreground music, and paging applications.
More Information
Key Features
- Ceiling loudspeaker transducer assembly for standard 8-inch backcans
- Designed as an upgrade or replacement for conventional 8-inch ceiling speaker drivers
- Complete assembly including transducer, crossover network, and transformer
- 165 mm (6.5 in) coaxial woofer with butyl rubber surround
- 19 mm (0.75 in) titanium-coated tweeter
- Advanced crossover network for smooth and natural sound reproduction
- Built-in 70V/100V multi-tap transformer
- Wide frequency response with excellent speech intelligibility
- Ideal for distributed audio, paging, and commercial sound systems
- Compatible with third-party plenum-rated backcans
Technical Specification
- Frequency Range: 80 Hz – 20 kHz
- Power Rating: Via transformer taps
- Transformer Taps:
- 60 W
- 30 W
- 15 W
- 7.5 W (@ 70V)
- Coverage Angle: 90° conical
- Directivity Index (DI): 4.6 (average 500 Hz – 4 kHz)
- Maximum SPL (1 m): 106 dB (top 70V/100V tap)
- Sensitivity: 89 dB (100 Hz – 10 kHz)
- Drivers:
- LF Driver: 165 mm (6.5 in) woofer
- HF Driver: 19 mm (0.75 in) titanium-coated tweeter
- Input Connectors: Screw-locking barrier strip for bare wire
- Outside Dimensions (H × Dia):
- 210 × 252 mm (8.3 × 9.9 in)
- 190 mm (7.5 in) depth from ceiling tile surface to back of backcan
- Net Weight: 4.2 kg (10 lb)
