Description

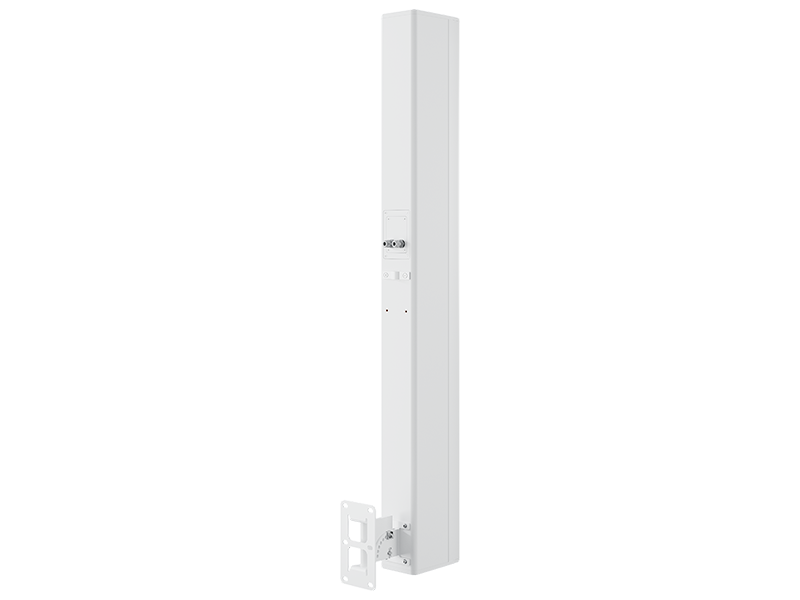

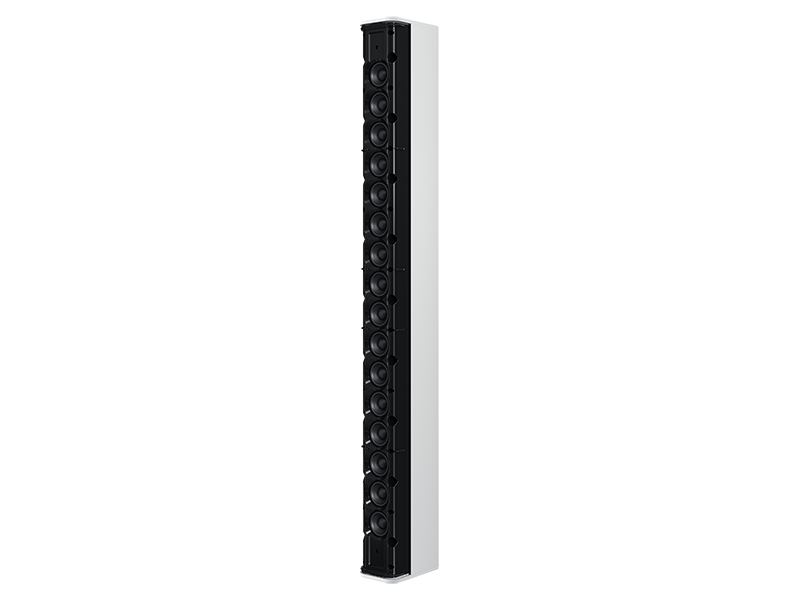

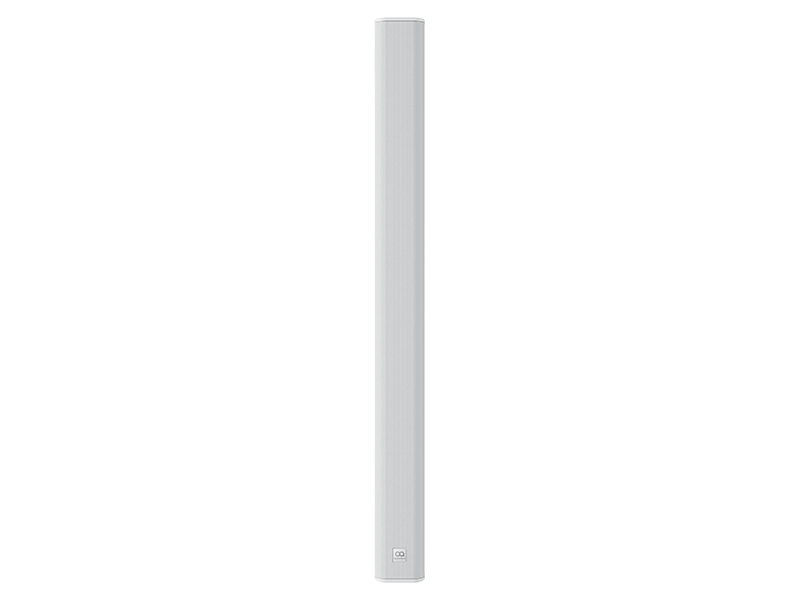

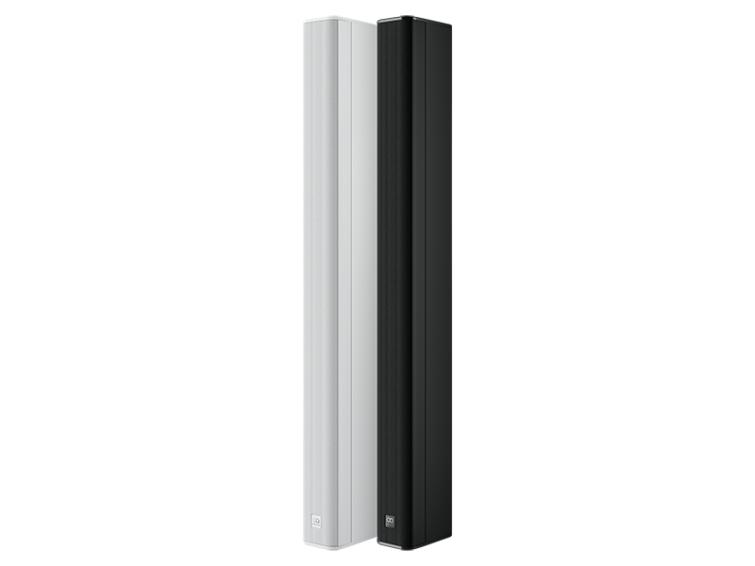

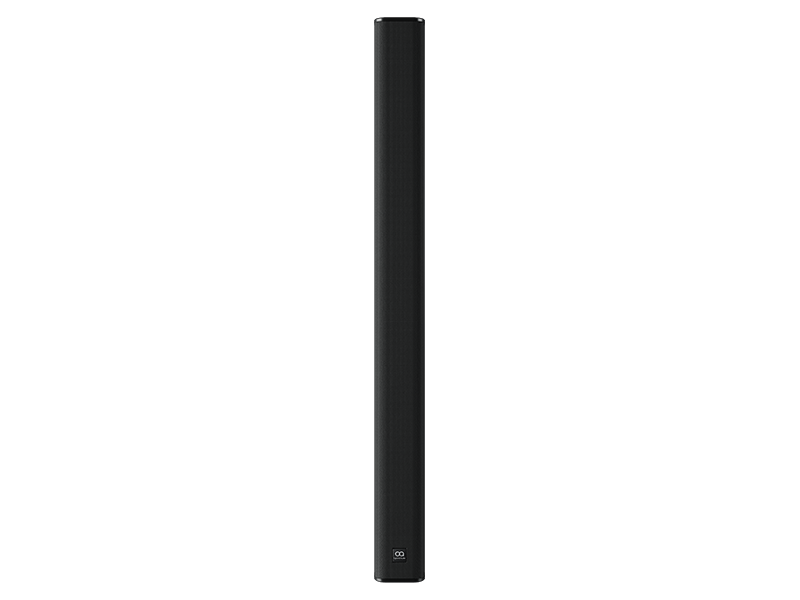

Column 16 is a high-performance passive column array loudspeaker engineered for larger commercial installations requiring superior speech intelligibility, extended coverage, and powerful audio performance. Featuring sixteen precision full-range drivers in a slim column design, Column 16 delivers wide horizontal dispersion with extremely controlled vertical coverage, making it ideal for challenging acoustic environments. With integrated transformer operation, weather-resistant construction, and flexible mounting options, Column 16 provides exceptional performance for both indoor and outdoor installed audio applications.
More Information
Key Features
• Passive column array design with 16 × 2.2-inch full-range drivers
• Wide horizontal coverage with tightly controlled vertical dispersion
• Integrated transformer supporting both low-impedance and distributed audio systems
• Weather-resistant IP54 construction for indoor and outdoor installations
• Speech and music DSP presets available through WebApp integration
• Full accessory kit included with bracket, safety strap, and weatherisation kit
• Elegant architectural design available in black or white finishes
• Paintable enclosure to match surrounding architecture
• Designed for larger commercial and distributed audio installations
Technical Specification
• Type: Full Range, Passive Column Array Loudspeaker with Transformer
• Frequency Response: 80Hz – 20kHz (-10dB)
• Drivers: 16 × 2.2″ (56mm) Full Range Drivers
• Rated Power: 240W AES
• Nominal Impedance: 8Ω
• Sensitivity: 90dB (1W/1m)
• Maximum SPL: 113dB Continuous / 119dB Peak @ 1m
• Crossover: Full Range — No Crossover
• Recommended High Pass Filter: 24dB per Octave @ 80Hz
• Transformer Taps @ 70V: 7.5W, 15W, 30W, 60W
• Transformer Taps @ 100V: 15W, 30W, 60W, 120W
• Dispersion: 150° Horizontal × 5° Vertical
• IP Rating: IP54 (with accessory terminal cover)
• Enclosure Material: ABS Construction
• Finish: Black and White Finish Options
• Protective Grille: Painted Steel
• Connectors: 4-Pin Euroblock
• Input Connections: Positive & Negative Input with Link-Out Terminals
• Mounting Points: 8 × M5 Mounting Points for Wall Bracket and Safety Strap
• Dimensions: 100mm (W) × 1100mm (H) × 155mm (D)
• Weight: 8kg (17.6lbs)
