Description

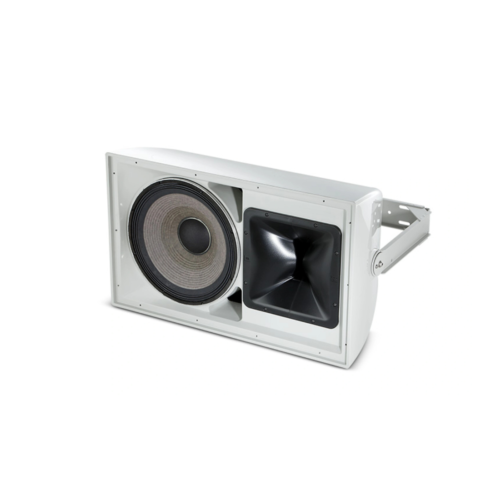

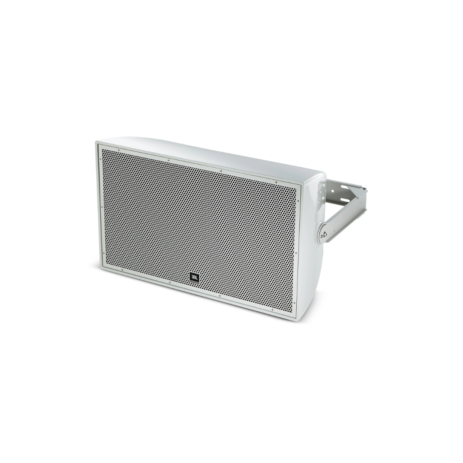

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 500 W 70/100V transformer.
More Information
Key Features
- 120° x 60° coverage
- EN 54-24 compliant for life safety applications
- 15-inch JBL 2265H Differential Drive® LF driver
- JBL 2432H high-frequency compression driver
- Large PT™ Progressive Transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Weather-resistant fiberglass enclosure
- 500 W 70V/100V transformer included

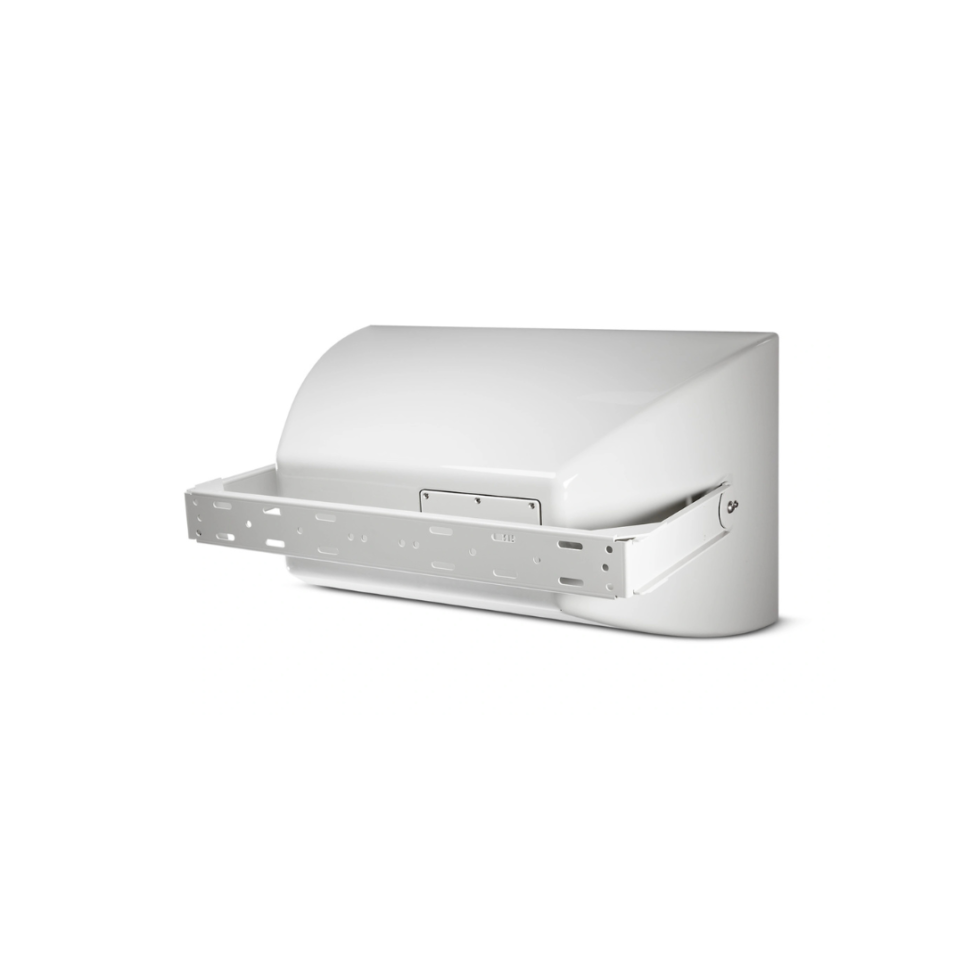

- U-type mounting bracket included
- Available in Gray and Black finish
Technical Specification
- Speaker Type: Passive all-weather loudspeaker
- Configuration: 2-way full-range
- LF Driver: 1 x JBL 2265H, 380 mm / 15 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 120° x 60°, rotatable waveguide
- Frequency Range: 39 Hz – 20 kHz
- Frequency Response: 86 Hz – 17 kHz
- Directivity Factor: 7.9
- Directivity Index: 9 dB
- Crossover Frequency: 1.1 kHz
- System Power Rating: 400 W / 1600 W peak, 100 hours
- Maximum SPL at 1m: 127 dB continuous average / 133 dB peak
- Maximum SPL at 4m: 108 dB per EN54 standard
- System Sensitivity: 100 dB, 1W @ 1m
- Sensitivity: 86.98 dB SPL, 1W @ 4m
- Transformer Taps: 70V: 400 W, 200 W, 100 W
- Transformer Taps: 100V: 400 W, 200 W
- Nominal Impedance: 8 ohms / 6.2 ohms per EN54
- Waveguide: PT-H126HF-1
- Enclosure: Hand-laminated fiberglass, gray gelcoat
- Suspension Attachment: 2 x M10 for included U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point
- Grille: 16-gauge powder-coated stainless steel with foam and stainless steel mesh
- Input Connector: CE-compliant covered barrier strip terminals
- Environmental Rating: IP55C per IEC 529
- Dimensions: 485 x 810 x 478 mm
- Net Weight: 28.3 kg / 62.5 lb
