Description

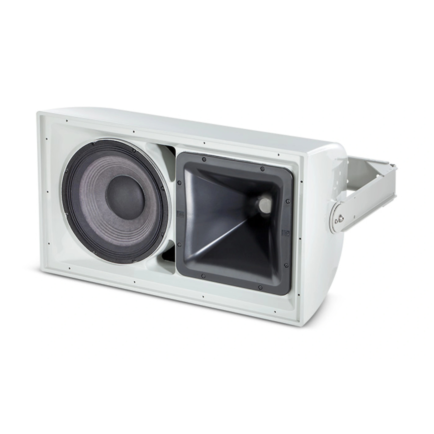

The JBL AW295-LS is a high-power, lightweight, 2-way full-range all-weather loudspeaker system for life safety applications. It uses a JBL 2262H 12-inch Differential Drive® low-frequency driver and JBL 2432H high-frequency compression driver. The large-format Progressive Transition waveguide provides 90° x 50° coverage and is rotatable for vertical or horizontal installation.
More Information
Key Features
- 90° x 50° coverage
- EN 54-24 compliant for life safety applications
- 12-inch JBL 2262H Differential Drive® LF driver
- JBL 2432H high-frequency compression driver
- Rotatable Progressive Transition waveguide
- Weather-resistant fiberglass enclosure
- 70V/100V transformer taps
- U-type mounting bracket support

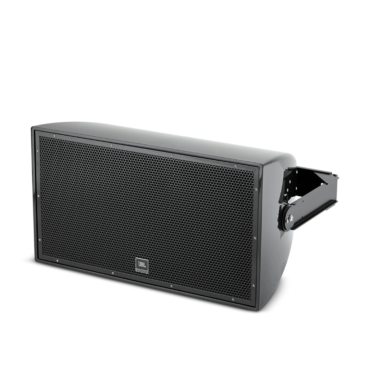

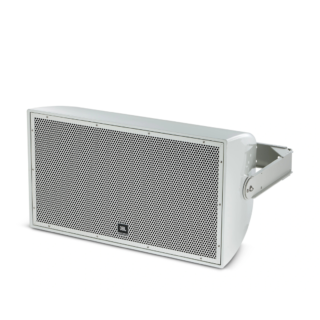

- Available in Gray and Black finish
Technical Specification
- Frequency Range (-10 dB): 74 Hz – 20 kHz
- Frequency Response (±3 dB): 106 Hz – 18 kHz
- Coverage Pattern: 90° x 50°, rotatable waveguide
- Directivity Factor (Q): 12.6
- Directivity Index (DI): 11 dB
- Crossover Frequency: 1.3 kHz
- System Power Rating: 400 W / 1600 W peak, 100 hours
- Maximum SPL at 1m: 125 dB SPL continuous average / 131 dB peak
- Maximum SPL at 4m: 111.92 dB
- System Sensitivity: 98 dB SPL, 1W @ 1m
- Sensitivity: 85.9 dB SPL, 1W @ 4m
- Transformer Taps: 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W
- LF Driver: 1 x JBL 2262H, 300 mm / 12 inch Differential Drive® driver with 75 mm / 3 inch dual voice coil
- Nominal Impedance: 8 ohms
- LF Sensitivity: 96 dB SPL, 1W @ 1m within operational band
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver with 75 mm / 3 inch voice coil
- HF Sensitivity: 113 dB SPL
- Waveguide: PT-H95HF-1
- Enclosure: Hand-laminated fiberglass, gray gelcoat similar to Pantone 420C; available in black version
- Suspension Attachment: 2 x M10 for included U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point
- Grille: Three-layer grille assembly with 16-gauge powder-coated stainless steel, open-cell foam, and stainless steel mesh
- Input Connector: CE-compliant covered barrier strip terminals
- Wire Acceptance: Up to 5.2 sq mm / 10 AWG wire or maximum 9 mm / 0.375 inch spade lugs
- Environmental Rating: IP55C per IEC529
- Dimensions: 409 x 732 x 452 mm
- Dimensions in Inches: 16.1 x 28.8 x 17.8 inch
- Net Weight: 25.2 kg / 55.5 lb
