Description

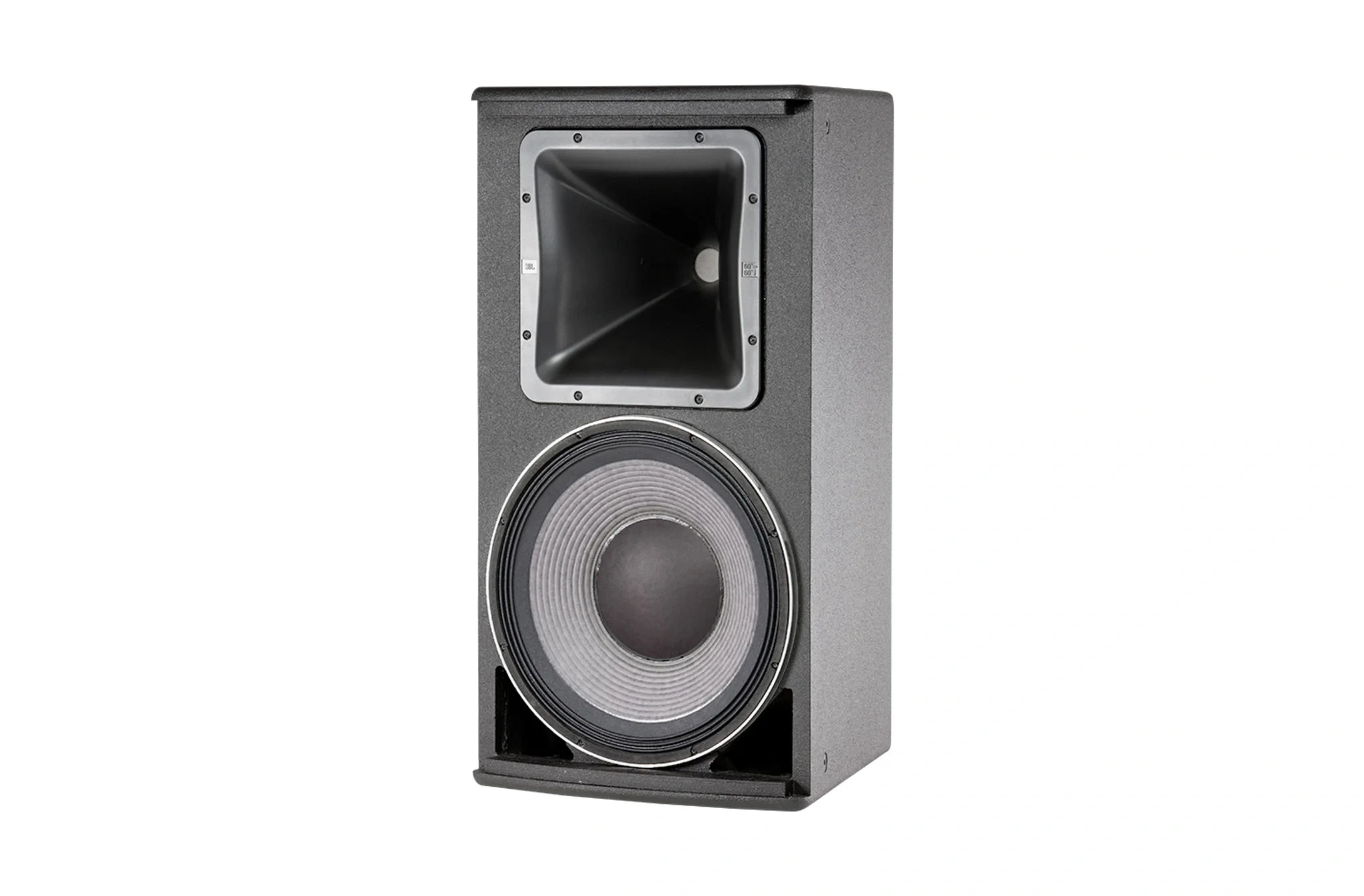

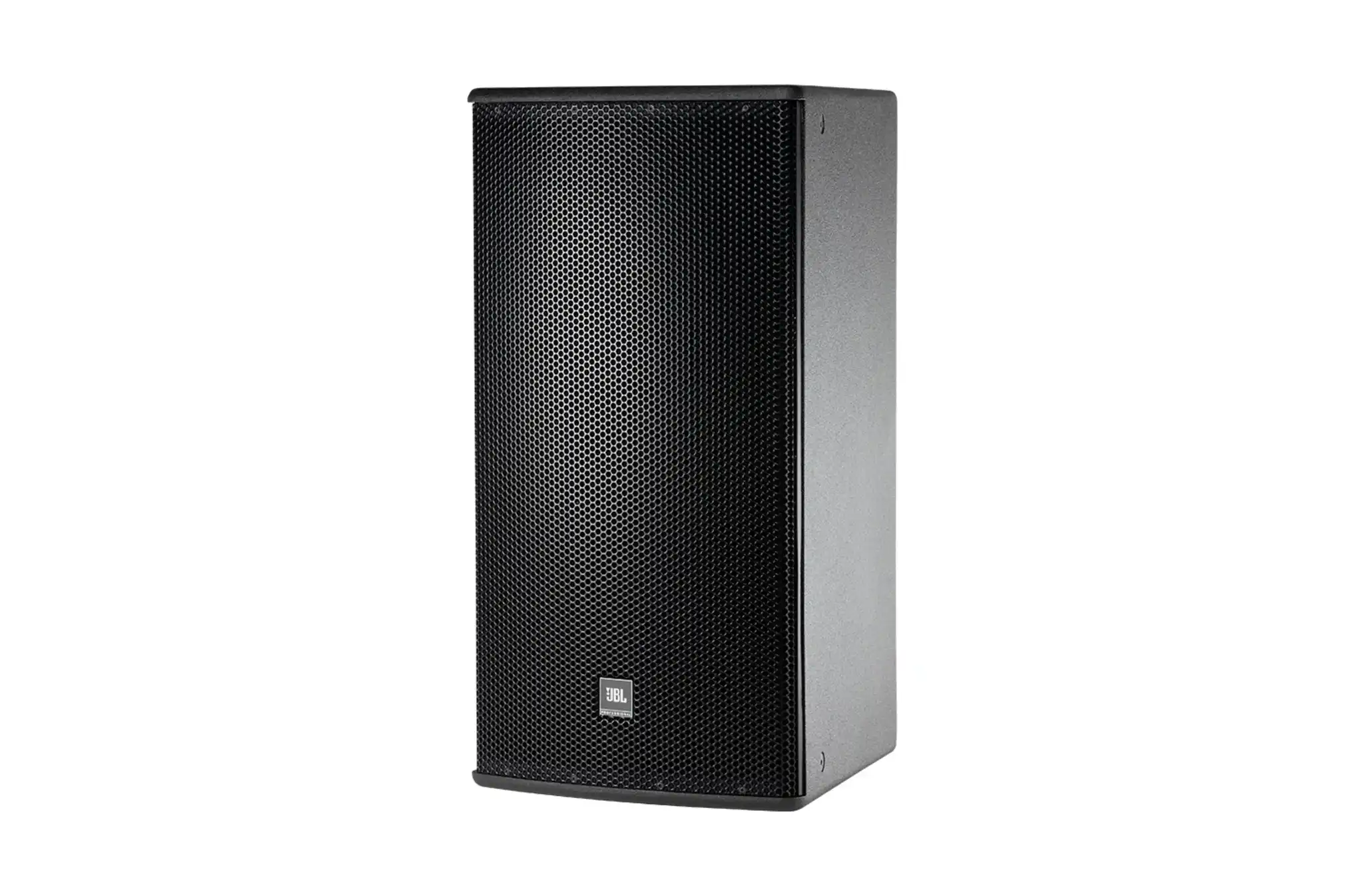

The JBL AM7215/95 is a high-power, lightweight, 2-way full-range loudspeaker system. It uses a JBL 2265H 15-inch Differential Drive® low-frequency driver and a JBL 2432H high-frequency compression driver. The large PT™ Progressive Transition waveguide provides 90° x 50° coverage and is rotatable for vertical or horizontal installation.
More Information
Key Features
- 90° x 50° coverage
- 15-inch JBL 2265H Differential Drive® LF driver
- JBL 2432H high-frequency compression driver
- Large PT™ Progressive Transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp / Passive switchable operation
- High-slope passive network
- Available in Black, White, WRC and WRX finishes
Technical Specification
- Speaker Type: Passive loudspeaker
- Configuration: 2-way full-range
- System Type: 15-inch two-way, high-power, full-range
- LF Driver: 1 x JBL 2265H, 380 mm / 15 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 90° x 50°
- Frequency Range: 34 Hz – 20 kHz
- Frequency Response: 40 Hz – 20 kHz
- Crossover Modes: Bi-Amp / Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- LF Power Rating: 1000 W / 4000 W peak, 2 hours
- LF Power Rating: 750 W / 3000 W peak, 100 hours
- HF Power Rating: 100 W / 400 W peak, 2 hours
- Passive Mode Power Rating: 600 W / 2400 W peak, 100 hours
- Maximum SPL Bi-Amp Mode LF: 128 dB continuous / 134 dB peak
- Maximum SPL Bi-Amp Mode HF: 135 dB continuous / 141 dB peak
- Maximum SPL Passive Mode: 124 dB continuous / 130 dB peak
- System Sensitivity: 96 dB SPL passive mode
- Nominal Impedance: 8 ohms
- LF Driver Impedance: 8 ohms
- HF Driver Impedance: 8 ohms
- Enclosure: Trapezoidal with 15° side angles, 16 mm exterior-grade 11-ply Finnish birch plywood
- Suspension: 15 x M10 threaded attachment points
- Environmental Rating: Mil-Std 810; IP-x3 per IEC529
- Dimensions: 781 x 420 x 503 mm
- Net Weight: 27.2 kg / 60 lb
