Description

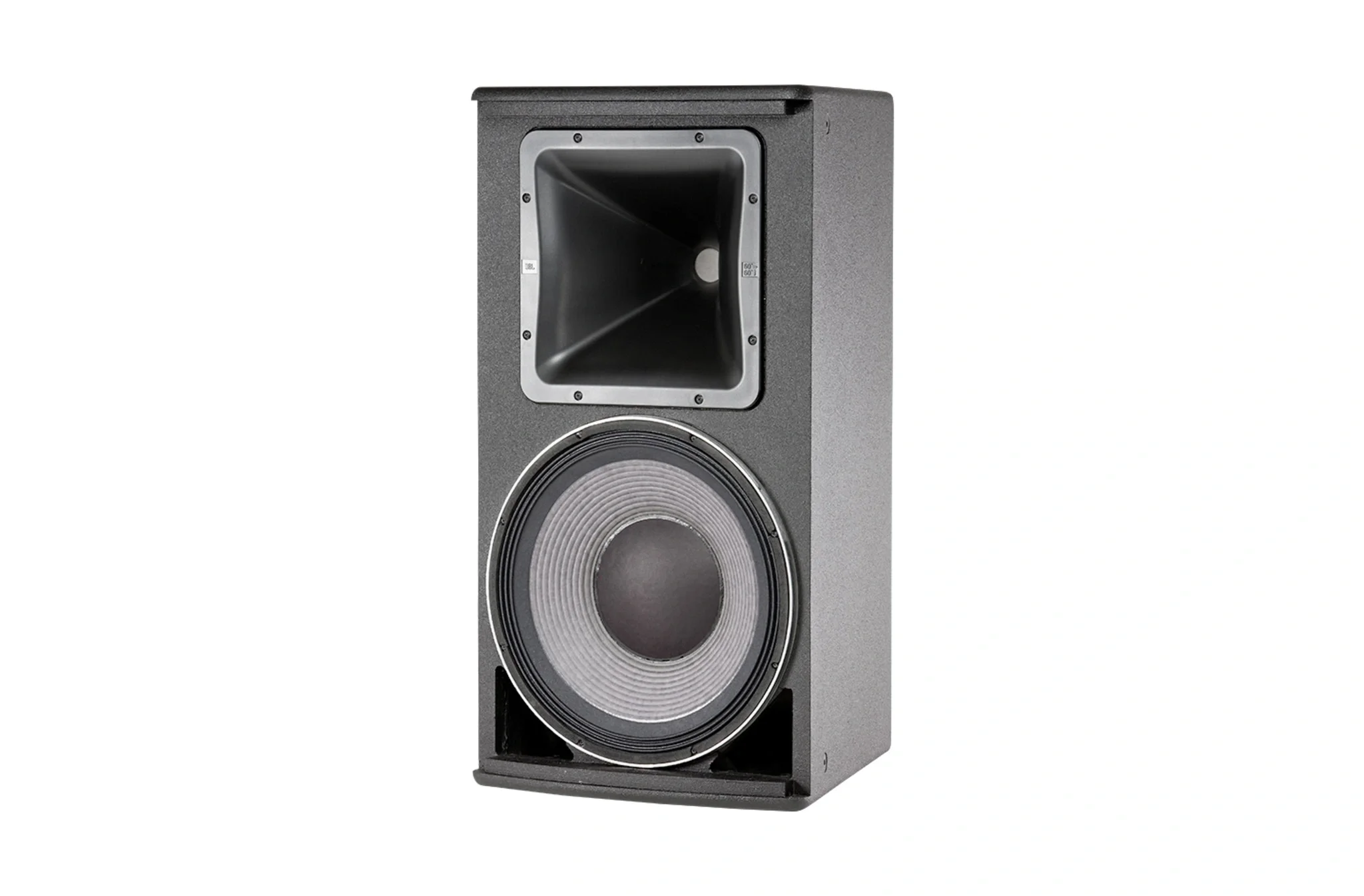

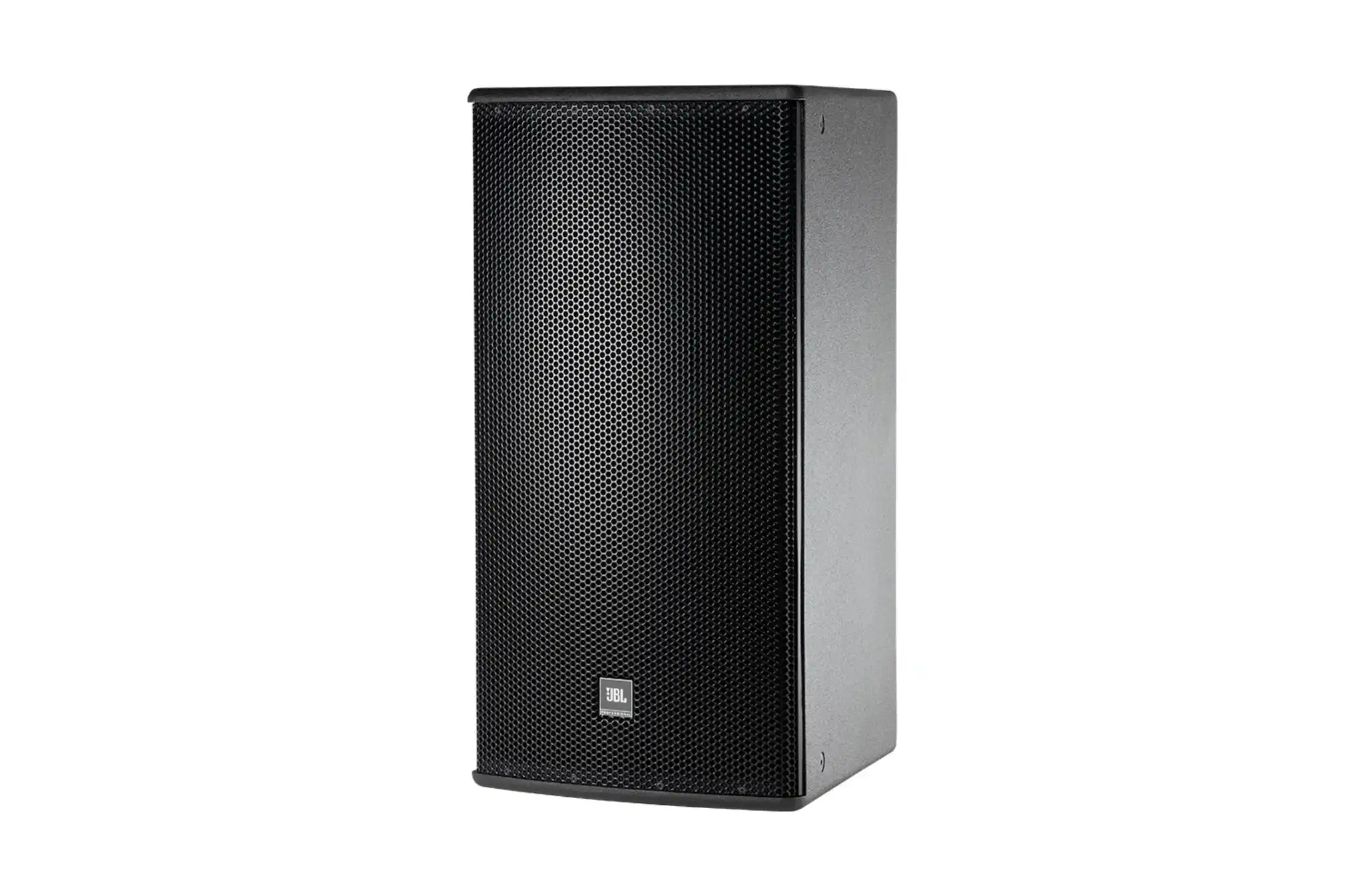

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
More Information
Key Features
- 120° x 60° Coverage
- 2265H Differential Drive® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Available in Black, White and WRC/WRX finishes
Technical Specification
- Speaker Type: Passive loudspeaker
- Configuration: 2-way full-range
- LF Driver: 1 x JBL 2262H, 300 mm / 12 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 60° x 60°
- Frequency Range: 36 Hz – 20 kHz
- Frequency Response: 42 Hz – 20 kHz
- Crossover Modes: Bi-Amp / Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- LF Power Rating: 1000 W / 4000 W peak, 2 hours
- LF Power Rating: 700 W / 2800 W peak, 100 hours
- HF Power Rating: 100 W / 400 W peak, 2 hours
- Passive Mode Power Rating: 600 W / 2400 W peak, 100 hours
- Maximum SPL Bi-Amp LF: 126 dB continuous / 132 dB peak
- Maximum SPL Bi-Amp HF: 134 dB continuous / 140 dB peak
- Maximum SPL Passive Mode: 123 dB continuous / 129 dB peak
- System Sensitivity: 95 dB SPL passive mode
- Nominal Impedance: 8 ohms
- LF Driver Impedance: 8 ohms
- HF Driver Impedance: 8 ohms
- Enclosure: Trapezoidal with 15° side angles, 16 mm exterior-grade 11-ply Finnish birch plywood
- Suspension: 15 x M10 threaded attachment points
- Environmental Rating: Mil-Std 810; IP-x3 per IEC529
- Dimensions: 711 x 369 x 458 mm
- Net Weight: 23.1 kg / 51 lb
