Description

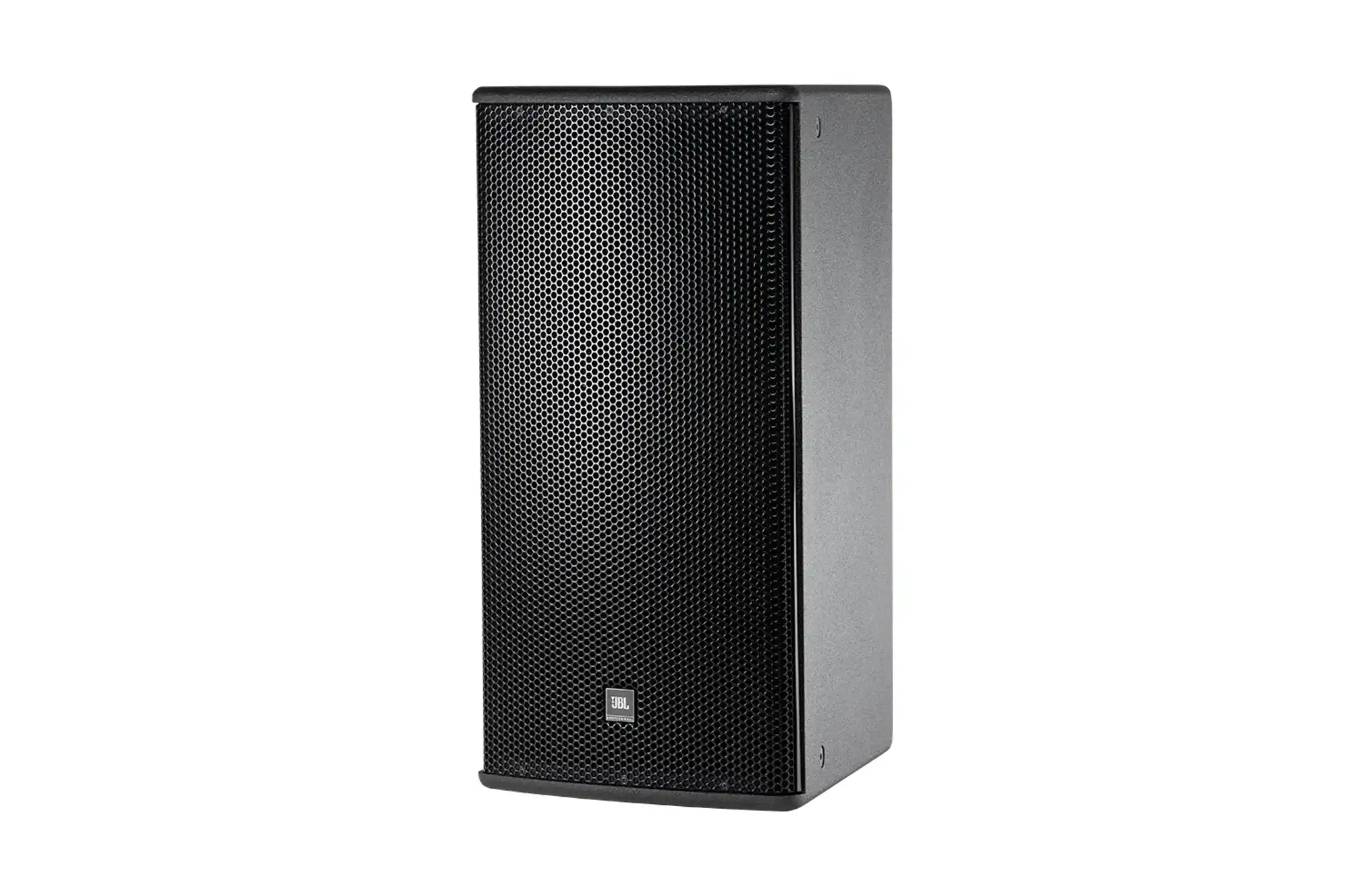

High Power 12-inch 2-Way Loudspeaker with 120° x 60° Rotatable Horn

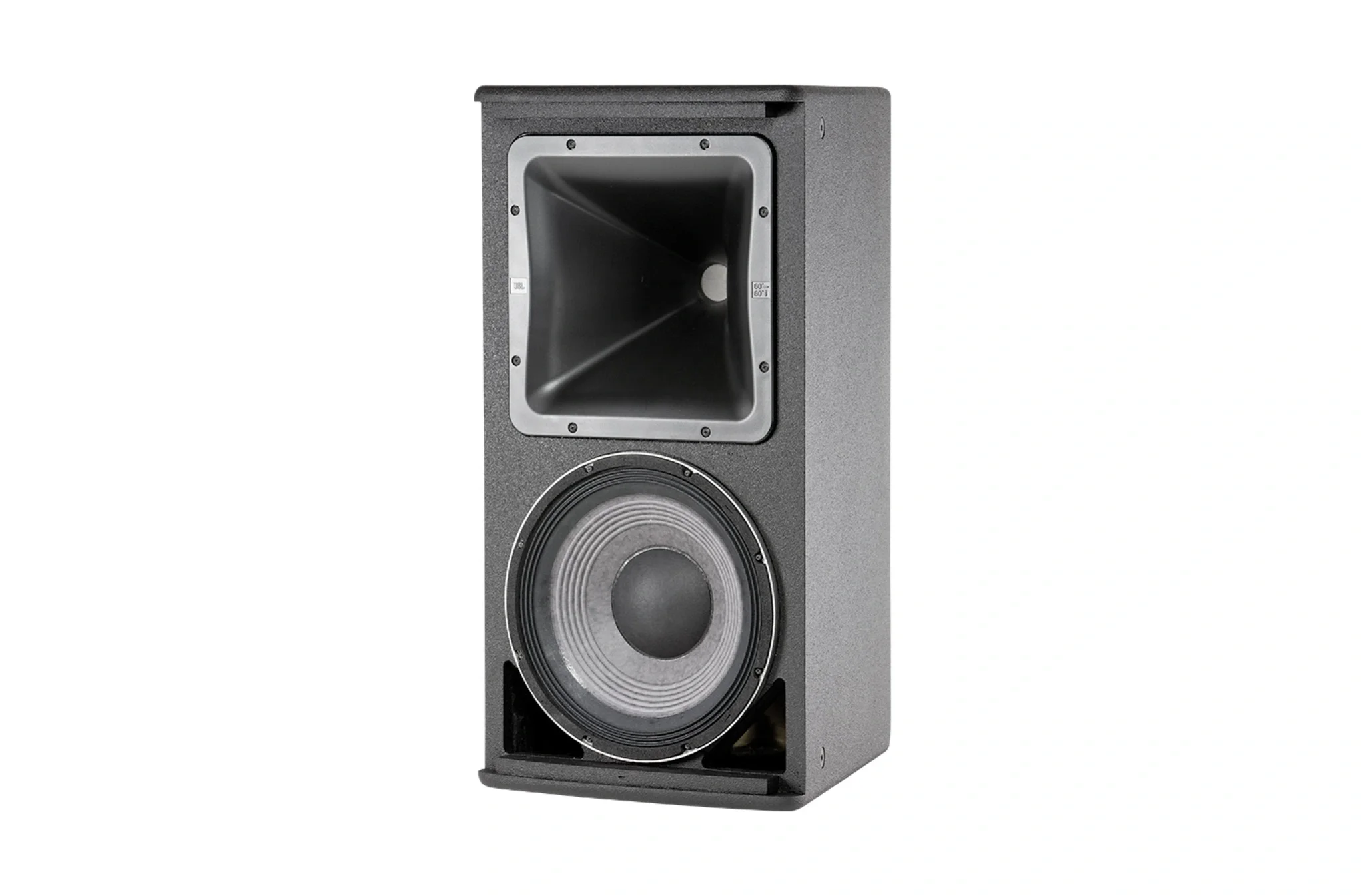

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
More Information
Key Features
- 120° x 60° Coverage
- 2262H Differential Drive® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Available in Black, White and WRC/WRX finishes
Technical Specification
- Speaker Type: Passive loudspeaker
- Configuration: 2-way full-range
- LF Driver: 1 x JBL 2262H, 300 mm / 12 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 120° x 60°
- Frequency Range: 36 Hz – 20 kHz
- Frequency Response: 42 Hz – 18 kHz
- Crossover Modes: Bi-Amp / Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- LF Power Rating: 1000 W / 4000 W peak, 2 hours
- LF Power Rating: 700 W / 2800 W peak, 100 hours
- HF Power Rating: 100 W / 400 W peak, 2 hours
- Passive Mode Power Rating: 600 W / 2400 W peak, 100 hours
- Maximum SPL Bi-Amp LF: 126 dB continuous / 132 dB peak
- Maximum SPL Bi-Amp HF: 133 dB continuous / 139 dB peak
- Maximum SPL Passive Mode: 123 dB continuous / 129 dB peak
- System Sensitivity: 95 dB SPL passive mode
- Nominal Impedance: 8 ohms
- LF Driver Impedance: 8 ohms
- HF Driver Impedance: 8 ohms
- Enclosure: Trapezoidal, 16 mm exterior-grade 11-ply Finnish birch plywood
- Suspension: 15 x M10 threaded attachment points
- Environmental Rating: Mil-Std 810; IP-x3 per IEC529
- Dimensions: 711 x 369 x 458 mm
- Net Weight: 23.1 kg / 51 lb
