Description

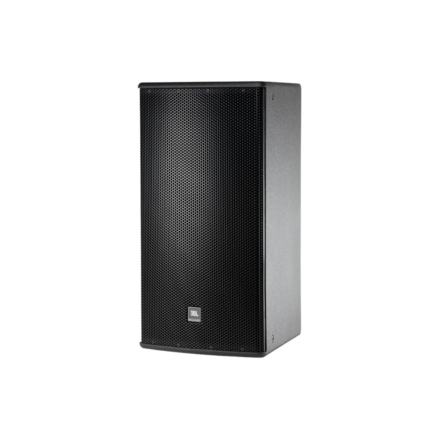

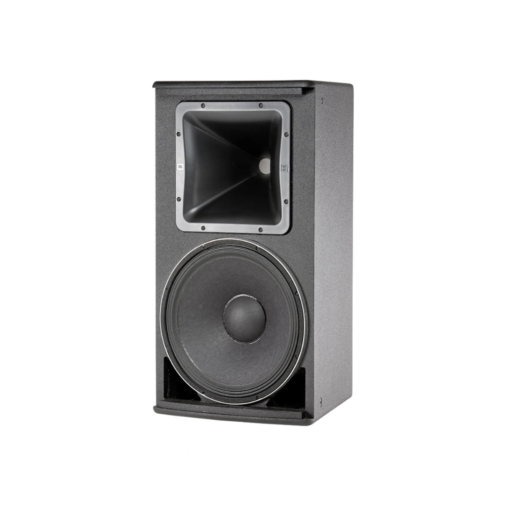

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
More Information
Key Features
- 90° x 50° Coverage
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX weather resistant finishes
Technical Specification
- Speaker Type: Passive loudspeaker
- Configuration: 2-way full-range
- LF Driver: 1 x JBL 265H-1, 380 mm / 15 inch
- HF Driver: JBL 2408H-1, 38 mm / 1.5 inch exit compression driver
- Coverage Pattern: 90° x 50°
- Frequency Range: 35 Hz – 20 kHz
- Frequency Response: 41 Hz – 18 kHz
- Directivity Factor: 11.6
- Directivity Index: 10.6 dB
- Crossover Modes: Bi-Amp / Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- LF Power Rating: 500 W / 2000 W peak
- HF Power Rating: 40 W / 160 W peak
- Passive Mode Power Rating: 350 W / 1400 W peak
- Nominal Impedance: 8 ohms
- System Sensitivity: 98 dB SPL passive mode
- Maximum SPL Passive Mode: 124 dB continuous / 130 dB peak
- Maximum SPL Bi-Amp Mode LF: 125 dB continuous / 131 dB peak
- Maximum SPL Bi-Amp Mode HF: 129 dB continuous / 135 dB peak
- Waveguide: PT-H95HF-1
- Enclosure: Trapezoidal, 16 mm exterior-grade 11-ply birch plywood
- Finish: Black DuraFlex™ finish
- Grille: Powder-coated 14-gauge perforated steel grille with foam backing
- Suspension: 15 x M10 threaded attachment points
- Input Connector: NL4 Neutrik Speakon® and covered barrier strip terminals
- Environmental Rating: Mil-Std 810; IP-x3 per IEC529
- Dimensions: 781 x 420 x 503 mm
- Net Weight: 25 kg / 55 lb
