Description

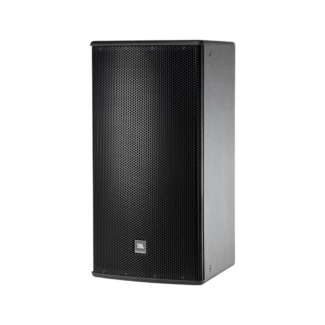

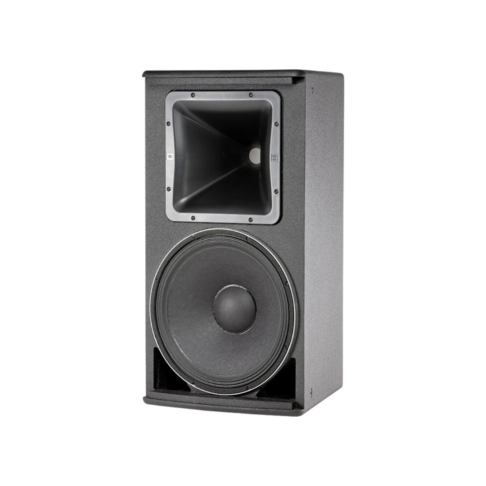

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
More Information
Key Features
- 120° x 60° Coverage
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Available in Black, White and WRC/WRX weather resistant finishes
Technical Specifications
- Type: 15″ 2-Way Full-Range Passive Loudspeaker
- LF Driver: 1 × 15″ JBL 265H-1 Differential Drive®
- HF Driver: JBL 2408H-1, 1.5″ compression driver
- Coverage Pattern: 120° × 60° rotatable horn
- Power Handling: 350W Continuous / 1400W Peak
- LF AES Power: 500W / 2000W Peak
- HF AES Power: 40W / 160W Peak
- Frequency Response: 41 Hz – 18 kHz
- Frequency Range: 35 Hz – 20 kHz
- Impedance: 8Ω
- Sensitivity: 98 dB
- Max SPL: 124 dB Continuous / 130 dB Peak
- Crossover: 1.3 kHz
- Mode: Passive / Bi-Amp switchable
- Dimensions: 783 × 422 × 504 mm
- Weight: 25 kg
