Description

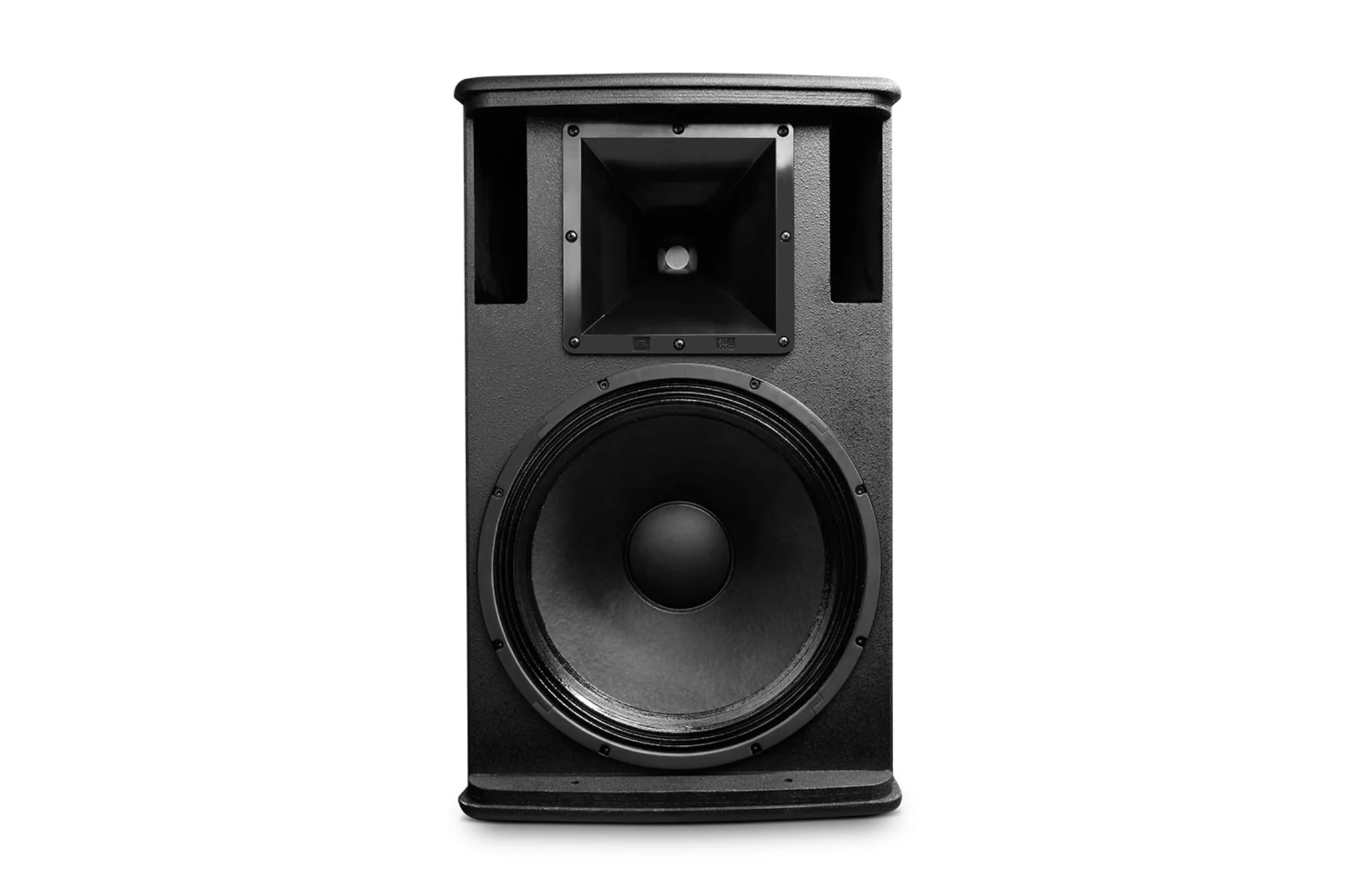

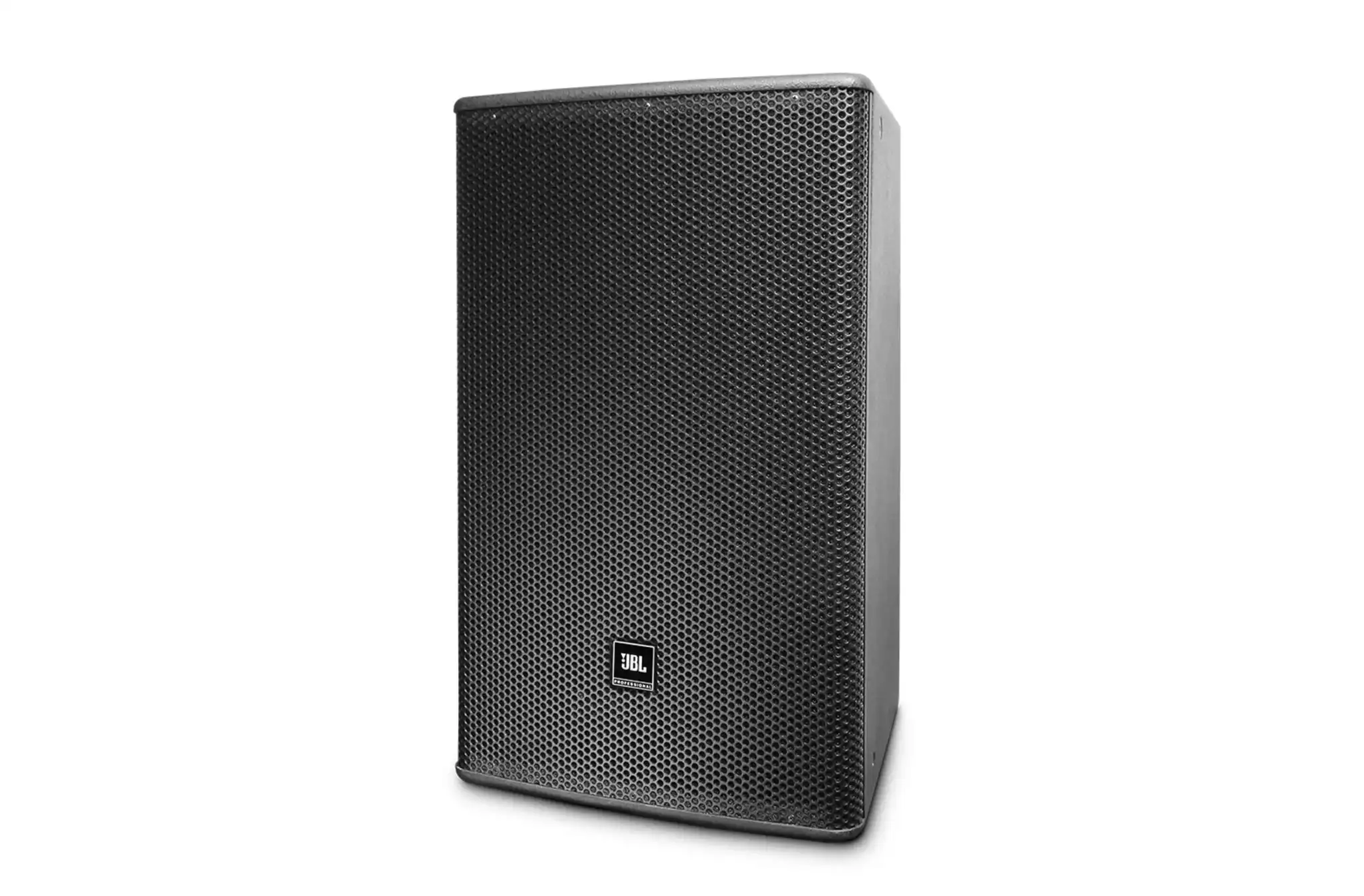

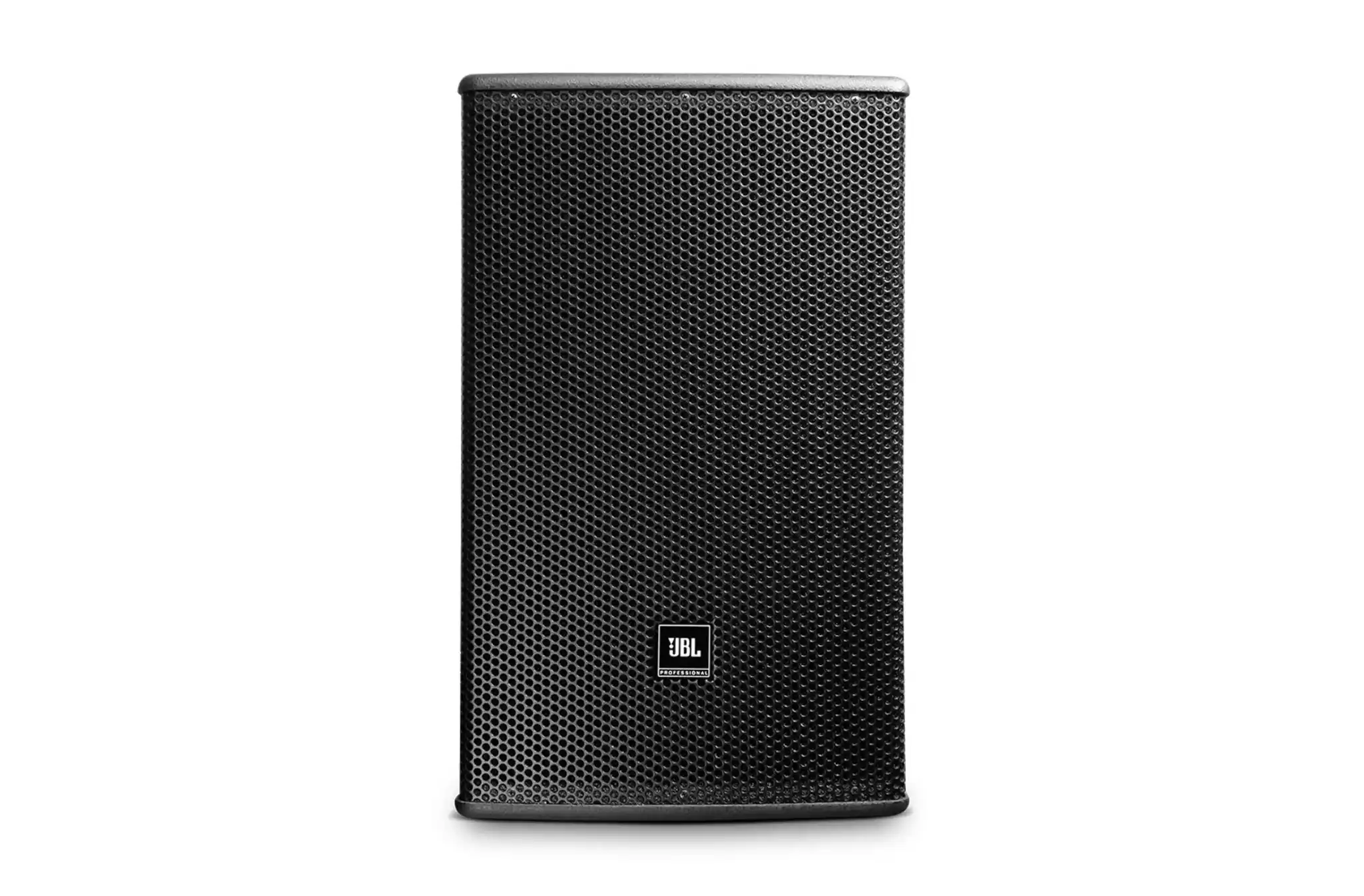

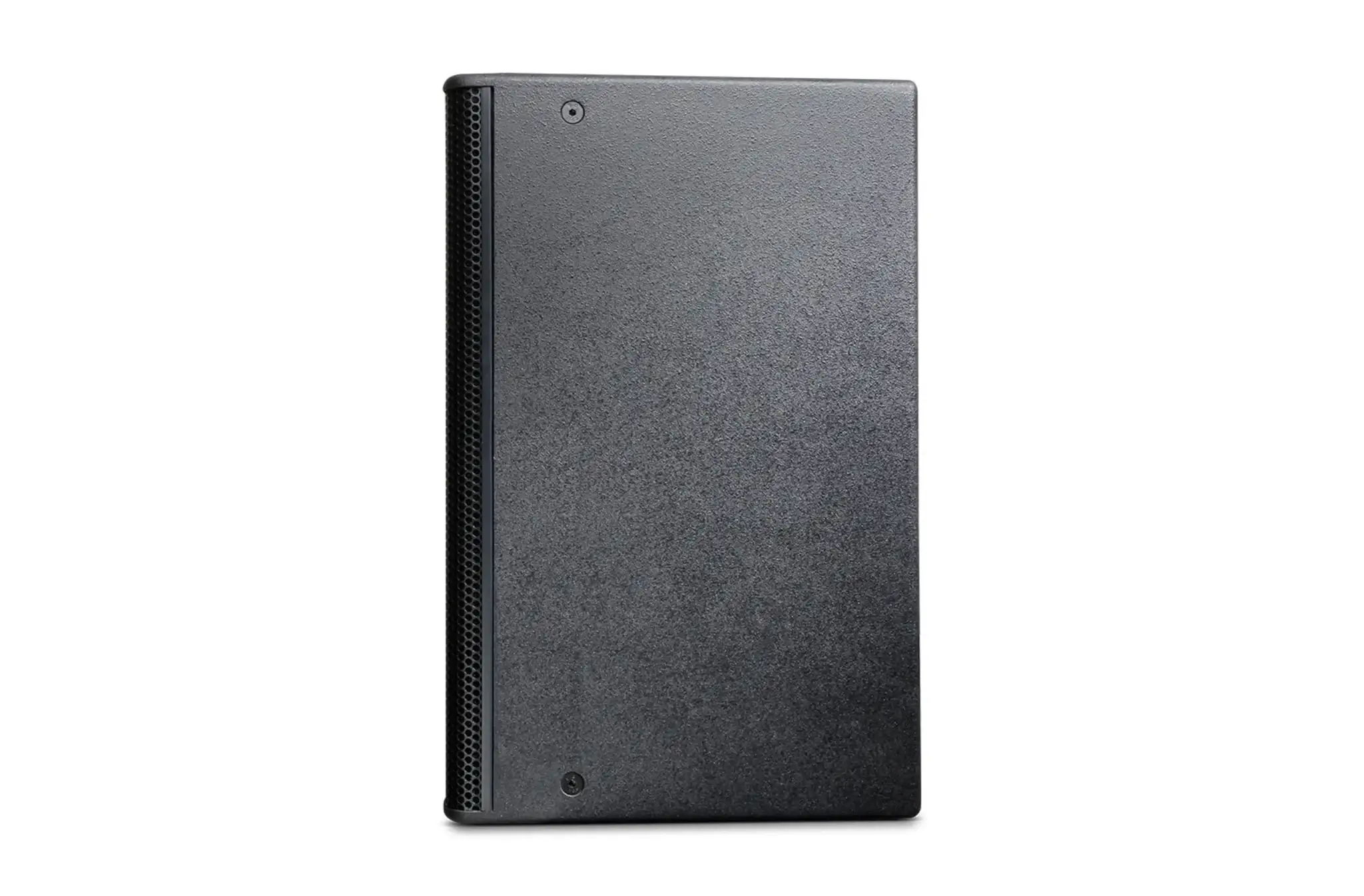

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
More Information
Key Features
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Technical Specifications
- Type: High Output Compact Dual 15″ 2-Way Passive Loudspeaker
- LF Driver: 2 × 15″ woofers
- HF Driver: 1 × 1.5″ exit compression driver
- Coverage Pattern: 60° × 60° rotatable waveguide
- Power Handling: 600W Continuous / 1200W Program / 2400W Peak
- Frequency Response: 55 Hz – 18 kHz
- Frequency Range: 45 Hz – 20 kHz
- Impedance: 4Ω
- Sensitivity: 98 dB
- Max SPL: 126 dB / 132 dB Peak
- Crossover: 1.5 kHz
- Connectors: Dual Neutrik NL4 + screw terminals
- Cabinet: Multi-ply hardwood plywood
- Mounting: M10 suspension points
- Finish: Black textured paint, white optional
