Description

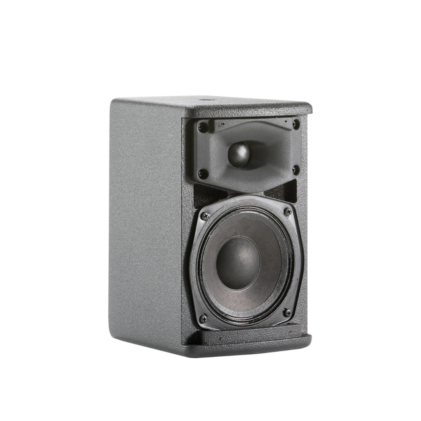

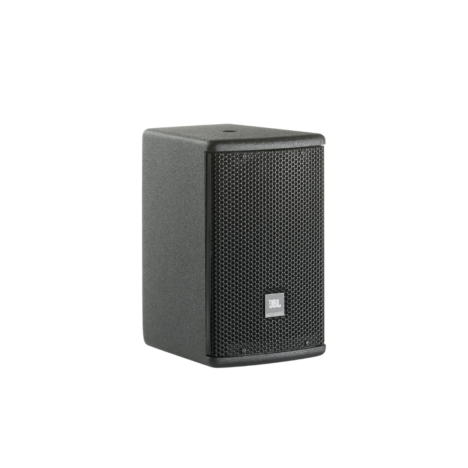

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25″ point-and-shoot box to dual 8″ loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1″ dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1″ exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL’s Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
More Information
Key Features
- 1” Dome Tweeter with 90° x 90° Coverage.
- 135 mm (5.25 in) LF transducer
- Ultra compact enclosure
- 300W Program Power
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket
Technical Specifications
- Type: Ultra-Compact 2-Way Passive Loudspeaker
- LF Driver: 5.25″ (135 mm) Woofer
- HF Driver: 1″ Dome Tweeter
- Coverage Pattern: 90° × 90°
- Power Handling:
- Continuous: 150 W
- Program: 300 W
- Peak: 600 W
- Frequency Response (±3 dB): 90 Hz – 18 kHz
- Frequency Range (-10 dB): 80 Hz – 20 kHz
- Impedance: 16 Ω
- Sensitivity: 86 dB SPL (1W/1m)
- Maximum SPL: 108 dB
- Connectors: Dual Neutrik NL4 + Screw Terminal
- Cabinet Material: 12 mm Hardwood Plywood
- Dimensions (H × W × D): 241 × 150 × 178 mm
- Weight: 4.7 kg
- Mounting: U-Bracket and OmniMount Compatible
- Applications: Auditoriums, Theatres, Houses of Worship, Clubs, Sports Facilities, and Installed Sound Systems.
