Description

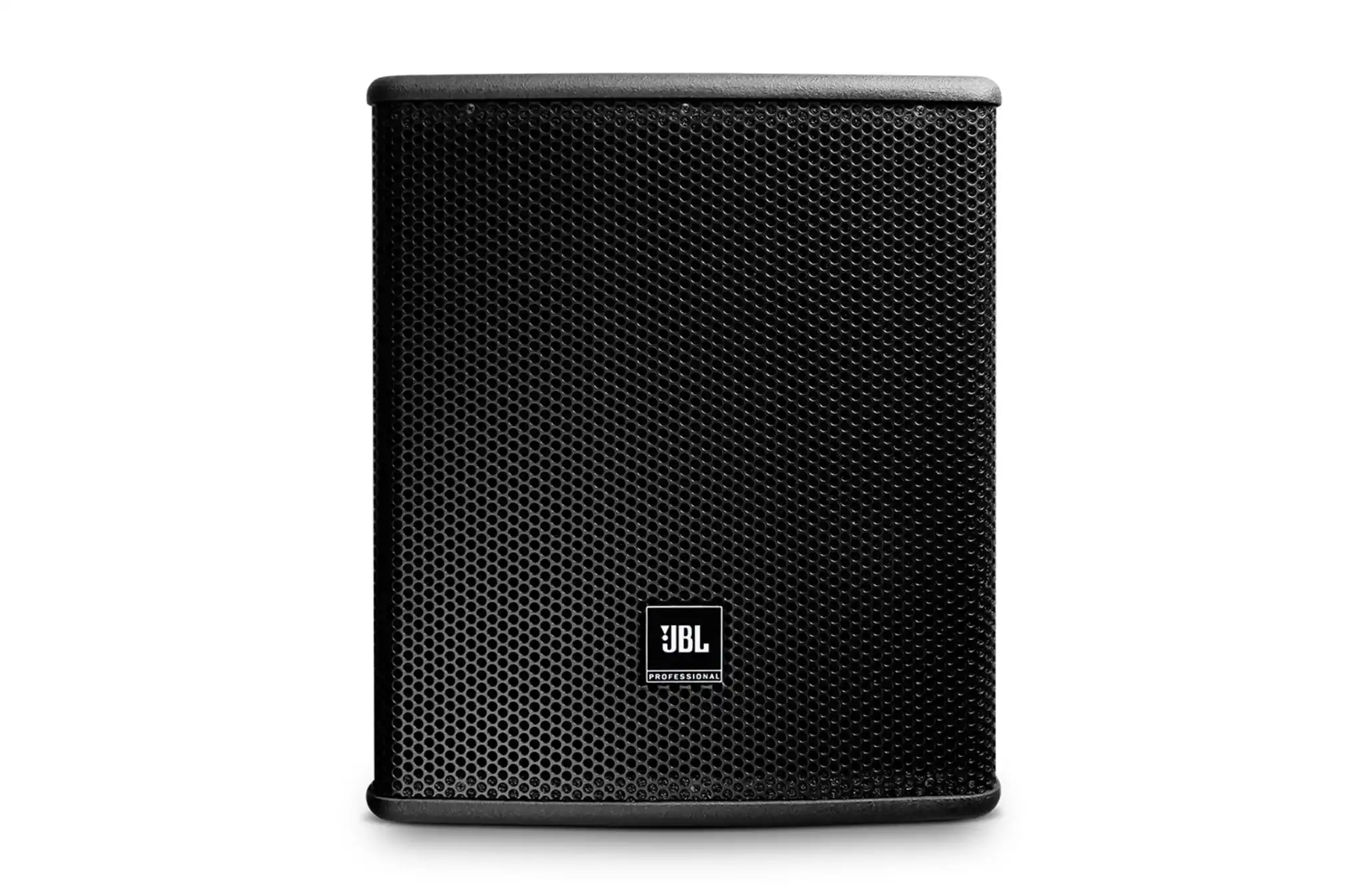

15-inch Subwoofer

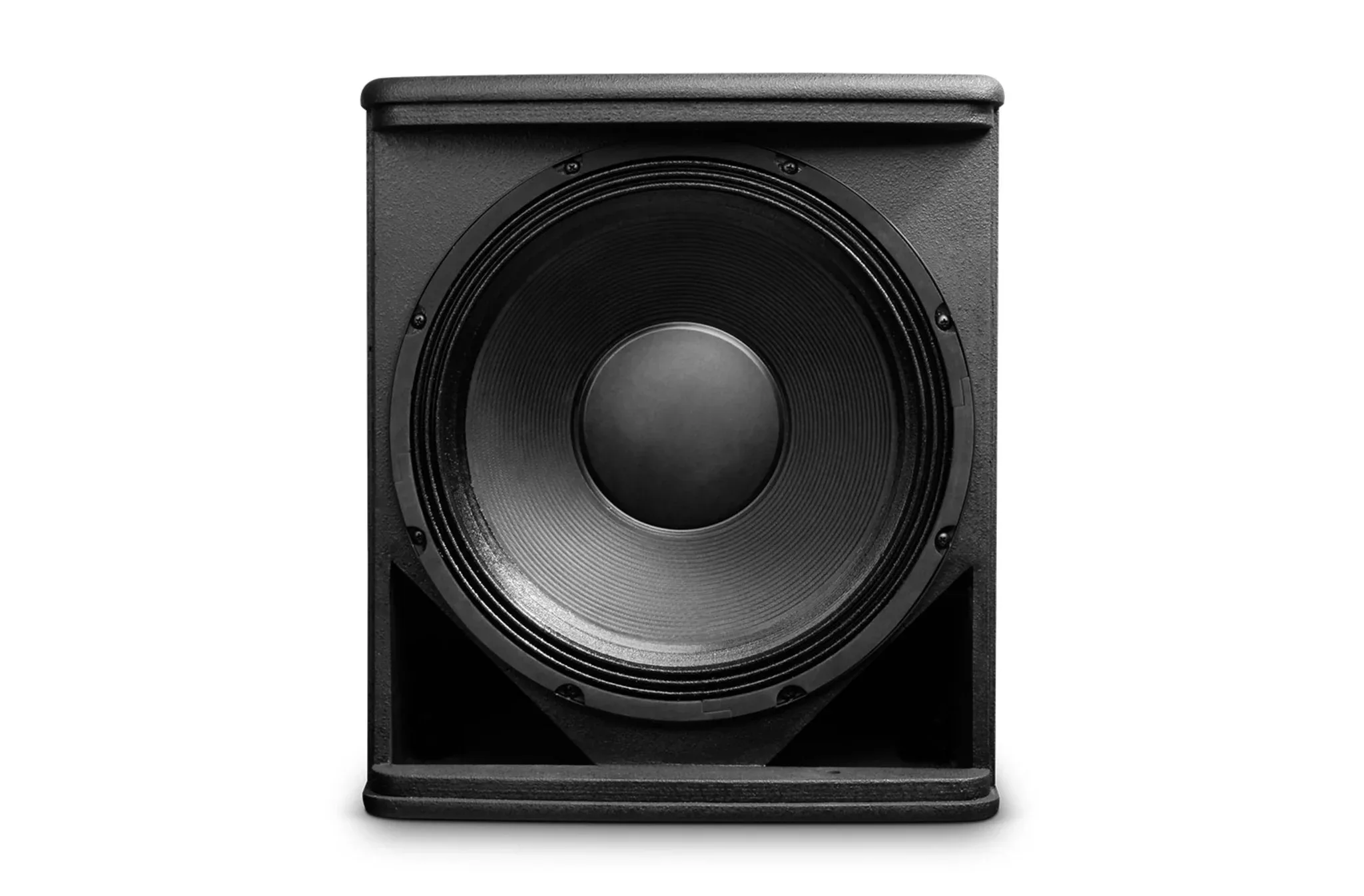

AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.
As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
More Information
Key Features
- High power and long excursion driver for lower frequency reproduction
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple Attachment Points for Ultimate Flexibility
- Robust 18 mm multiply hardwood with textured black finish
Technical Specifications
- Type: Compact 15″ Passive Subwoofer
- LF Driver: 1 × 15″ Woofer
- Power Handling: 400W Continuous / 800W Program / 1600W Peak
- Frequency Response: 40 Hz – 200 Hz
- Frequency Range: 35 Hz – 250 Hz
- Impedance: 8Ω
- Sensitivity: 95 dB
- Max SPL: 121 dB / 127 dB Peak
- Connectors: Dual Neutrik NL4 + screw terminals
- Cabinet: Multi-ply hardwood plywood
- Mounting: M10 suspension points
- Finish: Black textured paint, white optional
